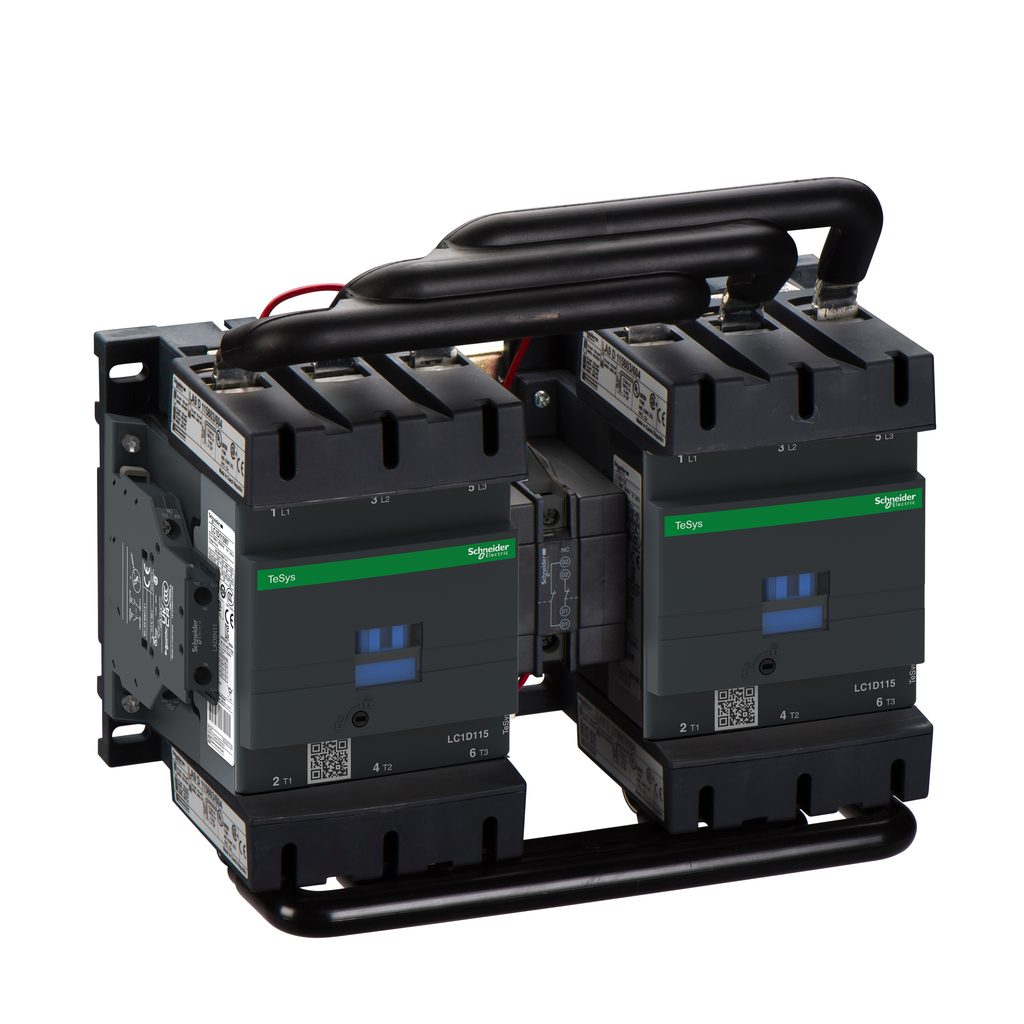

LC2D115M7 is a 3-pole TeSys D reversing contactor from Schneider Electric for motor applications. Rated 115A AC-3 55kW@400V, it includes a 220V 50/60Hz AC coil, 2NO+2NC aux contacts, mechanical and electrical interlock. LC2D115M7 is a 3-pole TeSys D reversing contactor from Schneider Electric for motor applications up to 55kW@400V. It includes a 220V 50/60Hz AC coil and 2NO+2NC built-in auxiliary contacts, NC mirror certified. Compact, DIN-rail mounting, with mechanical and electrical interlock and pre-wired reversing circuit, it procures reliability and durability. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Compact product, 266mm wide, for DIN-rail and panel mounting. Assembled with mechanical and electrical interlock and pre-wired reversing circuit. Clear separation between power and control circuits, easy front access to coil and auxiliary contacts connections. Equipped with a 220V AC coil that can be supplied at 50Hz or 60Hz. Provides 4 built-in auxiliary contacts 2NO + 2NC, NC contacts are mirror certified suitable to be included in the control of safety systems. High electrical durability, guaranteed for 0.9 million cycles at 115A AC-3 440V, for demanding motor switching applications. Robust design with high making and breaking capacities up to 20 In. Connection by screw clamp terminals.
TeSys Deca reversing contactor , 3P(3 NO) , AC-3 , <= 440V, 115A, 220V AC coil
TeSys Deca reversing contactor , 3P(3 NO) , AC-3 , <= 440V, 115A, 220V AC coil
SKU: 527787
Category: Automation & Control
Reviews (0)
Be the first to review “TeSys Deca reversing contactor , 3P(3 NO) , AC-3 , <= 440V, 115A, 220V AC coil” Cancel reply
