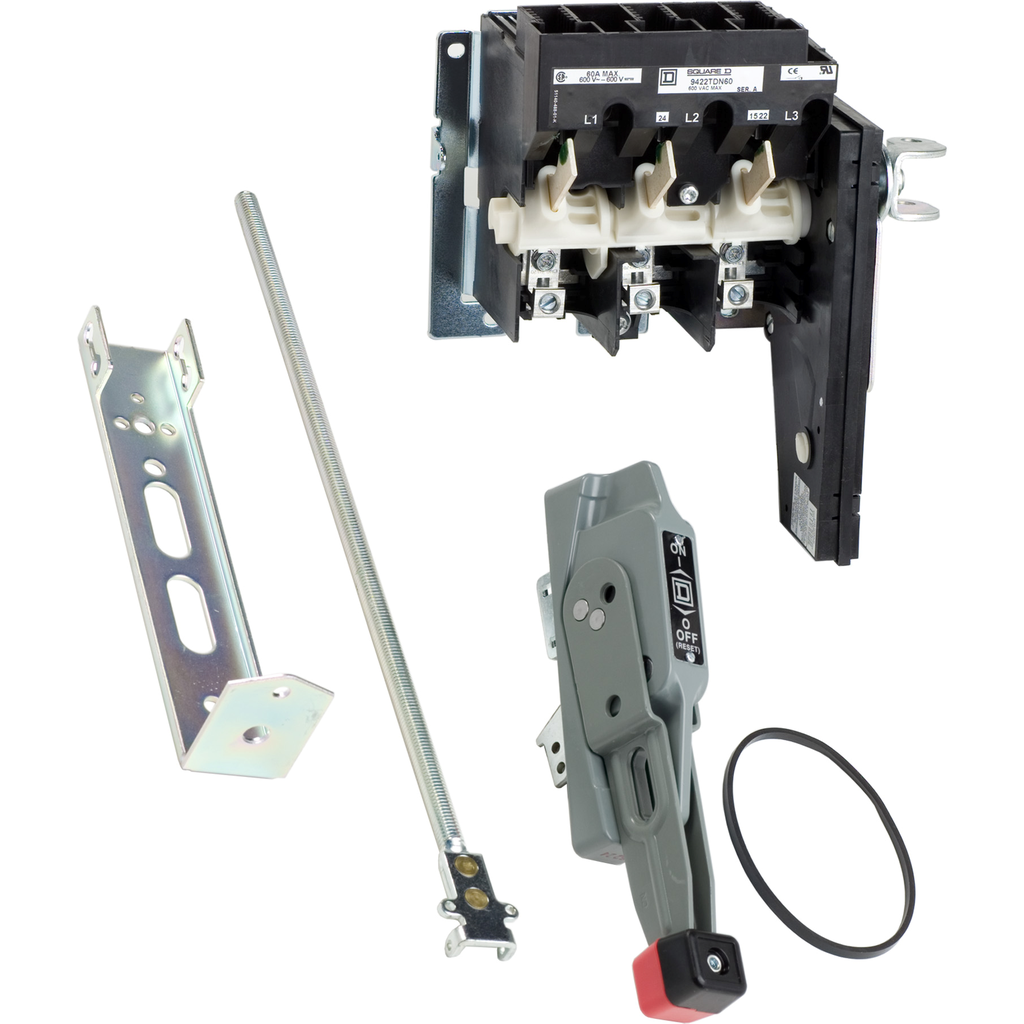

The 9422T disconnect switches were designed for control panel installations. These switches include common switch profile 30A to 100 A, interchangeable fuse clips 30A to 60 A, and the ability to add fuse clip kits and cable mechanisms. They are compatible with 9422A handle operators and 9423 door mechanisms. This switch and operating mechanism comes with a 9422A1 handle mechanism overpacked. This disconnect switch has a 60A rating. This disconnect switch has a rating of 15 HP at 208 and 240 VAC, 30 HP at 480 VAC, 50 HP at 600 VAC poly phase and 10 HP at 250 VDC with two poles. This disconnect has no fuses. This mechanism has a variable depth of 6.63 inches to 18 inches. Switch and operating mechanism is UL Component Recognized and CSA certified Disconnect switch is UL Component Recognized and CSA certified
Operating mechanism, flange mounted, variable depth, 60A, 600V, no fuse, switch mechanism, 6 inch handle, NEMA 4
Operating mechanism, flange mounted, variable depth, 60A, 600V, no fuse, switch mechanism, 6 inch handle, NEMA 4
SKU: 15036708
Category: Disconnect Switches
Reviews (0)
Be the first to review “Operating mechanism, flange mounted, variable depth, 60A, 600V, no fuse, switch mechanism, 6 inch handle, NEMA 4” Cancel reply
