Electronic pressure sensors, Pressure sensors XM, XMLR 25 bar, 1/4″ 18 NPT, 24 VDC, 4…20 mA, M12

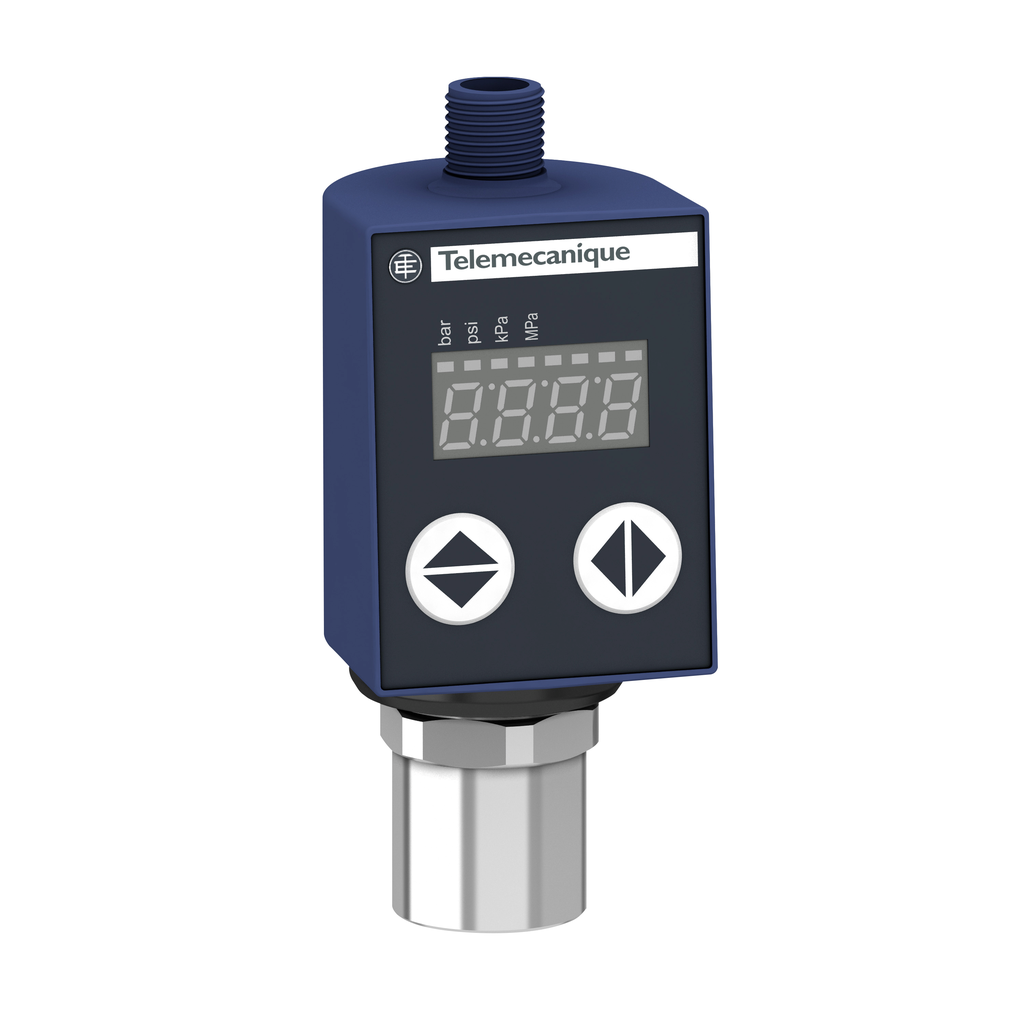

This XMLR Pressure Switch is a part of the OsiSense XM product range of pressure transmitters and switches. Its four digit display and push buttons for scrolling and selection provide a user friendly control. The compact sized, rotating body and flip over display function make mounting easy and flexible. This pressure switch controls or regulates pressure levels in air, fresh water, hydraulic oils, and refrigeration fluids. It is used for industrial equipment such as water pumps, compressors, molding presses, injection molders, grinding machines, and machining centers. The range of this transmitter is 0psi to 363psi and the current output is 4mA to 20mA. The transmitter accepts 24VDC power. The transmitter has a ceramic pressure measuring cell and uses an M12 4-pin male connector and a 1/4in NPT female fluid connection. It is compliant with CE, EAC, UL, and CULus, and IEC standards and IP65 and IP67 rated. It is suitable for monitoring air, fresh water, hydraulic oils and refrigeration fluids. This product is certified by CE, CULus and EAC. It meets EN/IEC 61326-2-3 and UL 61010-1 standards. One of the most comprehensive catalogues of industrial and power pressure sensors on the market. The line of XM Pressure Sensors and Switches (formerly known as OsiSense) combine the latest pressure sensing technology with adaptability to virtually any configuration.
