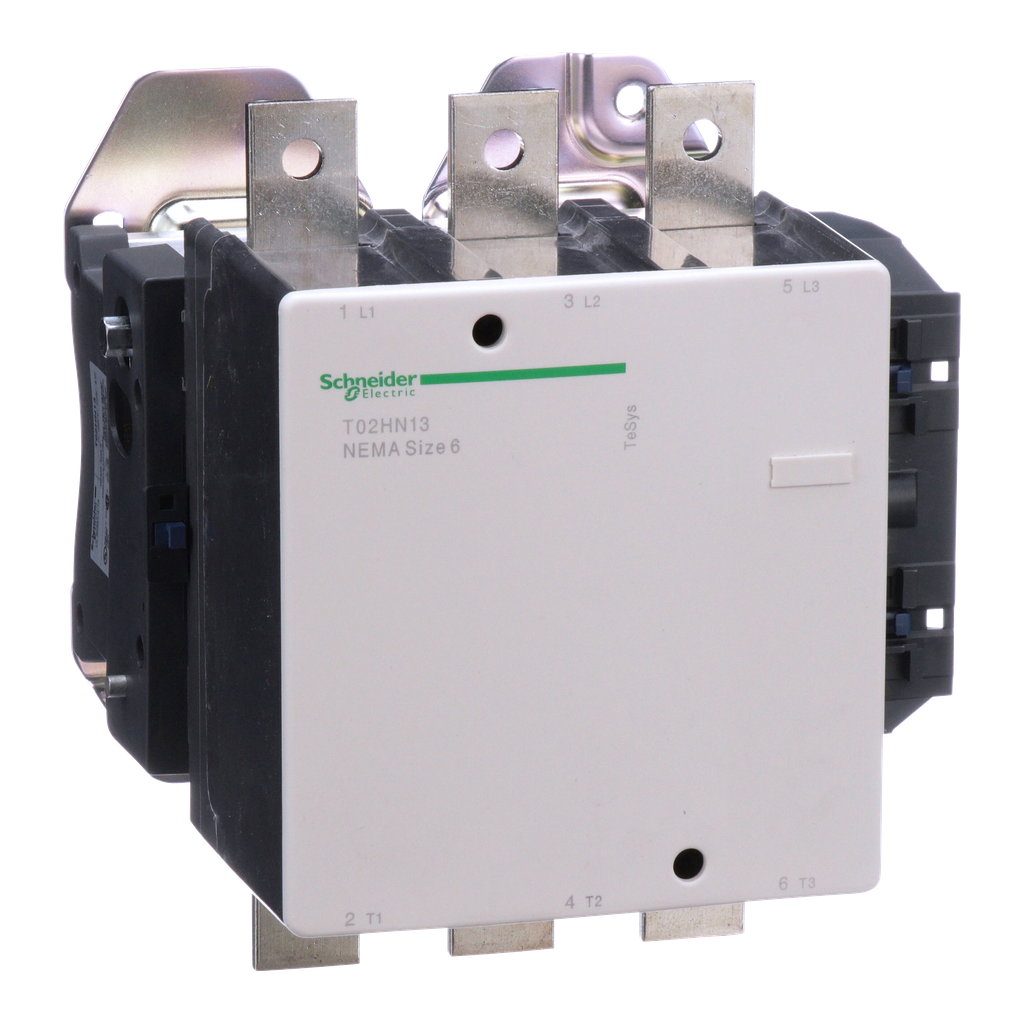

NEMA Contactor, TeSys N, nonreversing, Size 6, 540A, 400HP at 460VAC, 3 pole, 3 phase, 120VAC 50/60Hz coil, open

TeSys N contactors and starters conform to NEMA ICS2 standards. The NEMA size is printed directly on the face of the contactor. The 3 pole NEMA size 6 contactor has a 540 continuous current rating. It also has ratings of 150 HP at 200, 200 HP at 230 Vac and 400 HP at 460 and 575 VAC. To maximize convenience and to reduce inventory the TeSys N contactor uses the common TeSys accessories. The contactor has a 120 VAC replaceable coil. Contactor is UL listed and CSA Certified. This contactor is 8.90 inches tall, 9.37 inches wide and 9.17 inches deep. It weighs 25.83 lbs. The screw clamp terminals will accept control wires from 16 AWG to 12 AWG. This TeSys N contactor is UL listed and CSA Certified.
