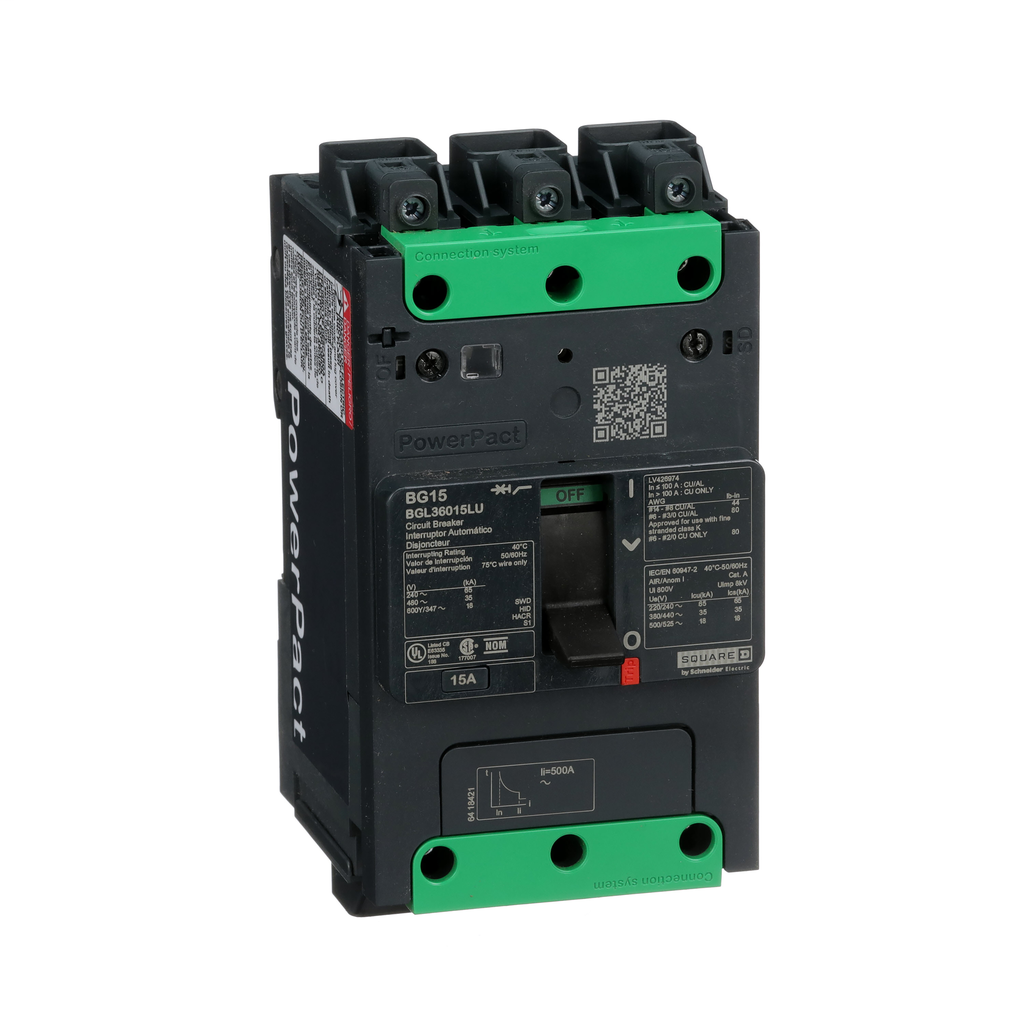

Circuit breaker, PowerPact B, 15A, 3 poles, 600Y/347V AC, 18kA at 600Y/347 UL, Everlink, control wire ON end

PowerPact B-frame circuit breaker, BGL36015LU, offers proven performance, flexibility, and reliability. This PowerPact Molded Case Circuit Breaker feature new innovations such as the patented EverLink™ connections. PowerPact B-frame circuit breakers provides economical thermal magnetic circuit protection with a breaking capacity of 25kA at 220 – 240 VAC50/60 Hz. Certified to UL, NEMA, IEC, CSA, NMX, GB Standards. Dimensions are 137 mm (H) x 81 mm(W) x 80 mm (D) and weighs 0.924 kg. PowerPact B-frame ratings and types. Available in 1, 2, 3, and 4-pole unit mount construction & 1, 2, and 3-pole I-Line™ construction. Cost-effective fixed thermal-magnetic trip units from 15-125A up to 600Y/347 Vac. Interrupting ratings include D-18 kA, G-35 kA, and J-65 kA at 480 Vac. Unique I-Line construction mounts into Square D™ panelboards and switchboards. Designed to the same 1.5″ per pole widths as the legacy F-frame, simplifying substitution without blank fillers. Unit mount (aka, lug-lug) construction is 30% smaller in size with 25% more capacity than the legacy unit-mount F-frame design EverLink atented technology. EverLink lug connectors reduce the loosening of cables over time using a spring tension design. EverLink lugs are rated for bare use with fine-stranded conductors up to Class K. EverLink lugs are also available with unique integrated control wire terminals.
