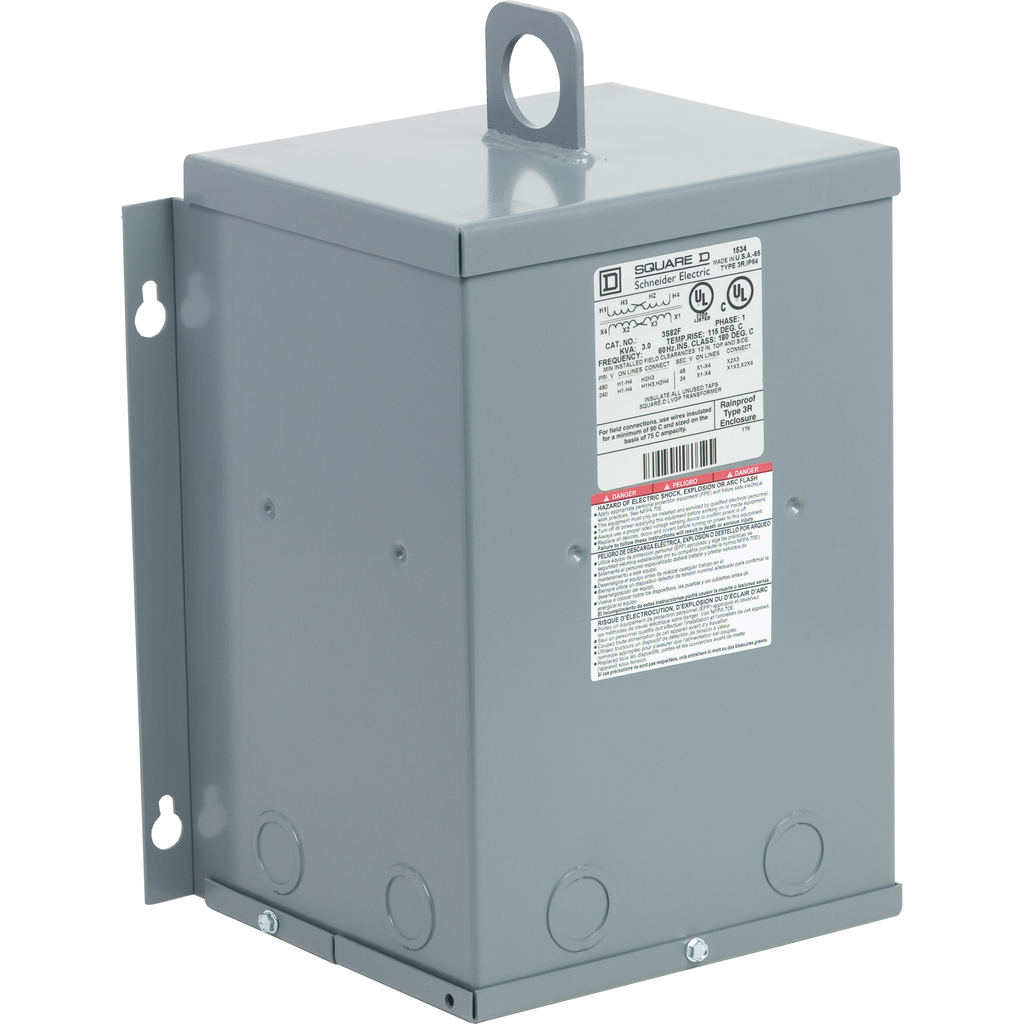

A Buck & Boost Transformer is an insulating transformer with either a 120 V x 240 V primary with a 12/24 V or 16/32 V secondary, or a 240 V x 480 V primary with a 24/48 V secondary. A Buck & Boost Transformer is also useful in applications where the primary and secondary are interconnected for use as an autotransformer. The equipment enclosure is designed and constructed for indoor or outdoor use and is NEMA 3R rated. Square D Buck and Boost Transformers are UL and cUL listed. This Buck and Boost Transformer is a 1 phase, and has a NEMA 3R enclosure rating. This transformer has a primary voltage of 240 x 480 V and a secondary voltage of 24/48 V. This product have a temperature rise of 115 °C. Dimensions for this product are 267 mm (H), 219 mm (W), 165 mm(D), and a weight of 60 lb(US).
Transformer, buck boost, encapsulated, 3kVA, 1 phase, 240x480V primary, 24/48V secondary, NEMA 3R, 115C rise
Transformer, buck boost, encapsulated, 3kVA, 1 phase, 240x480V primary, 24/48V secondary, NEMA 3R, 115C rise
