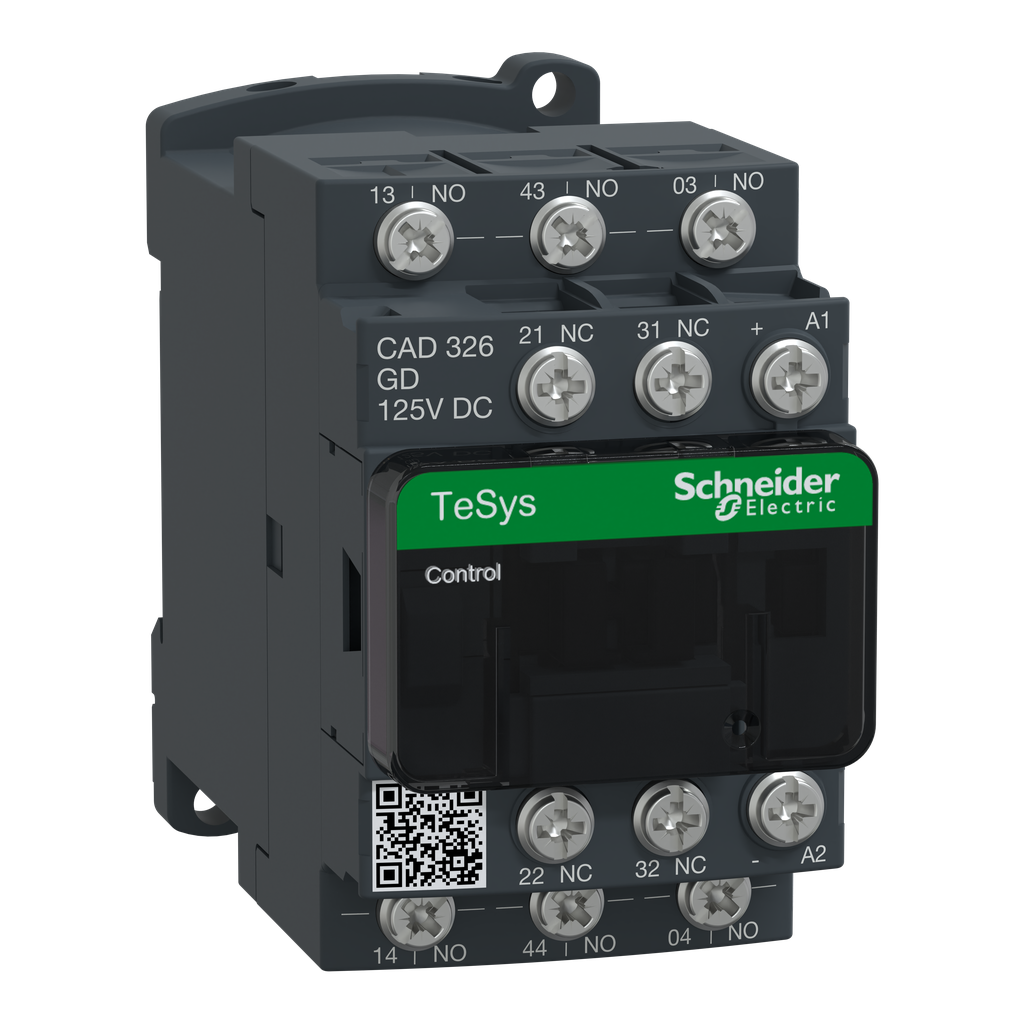

TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 125V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by lugs. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).
TeSys Deca control relay – 3 NO + 2 NC – <= 690 V – 125 V DC standard coil
TeSys Deca control relay – 3 NO + 2 NC – <= 690 V – 125 V DC standard coil
SKU: 508351
Category: Automation & Control
Reviews (0)
Be the first to review “TeSys Deca control relay – 3 NO + 2 NC – <= 690 V – 125 V DC standard coil” Cancel reply
