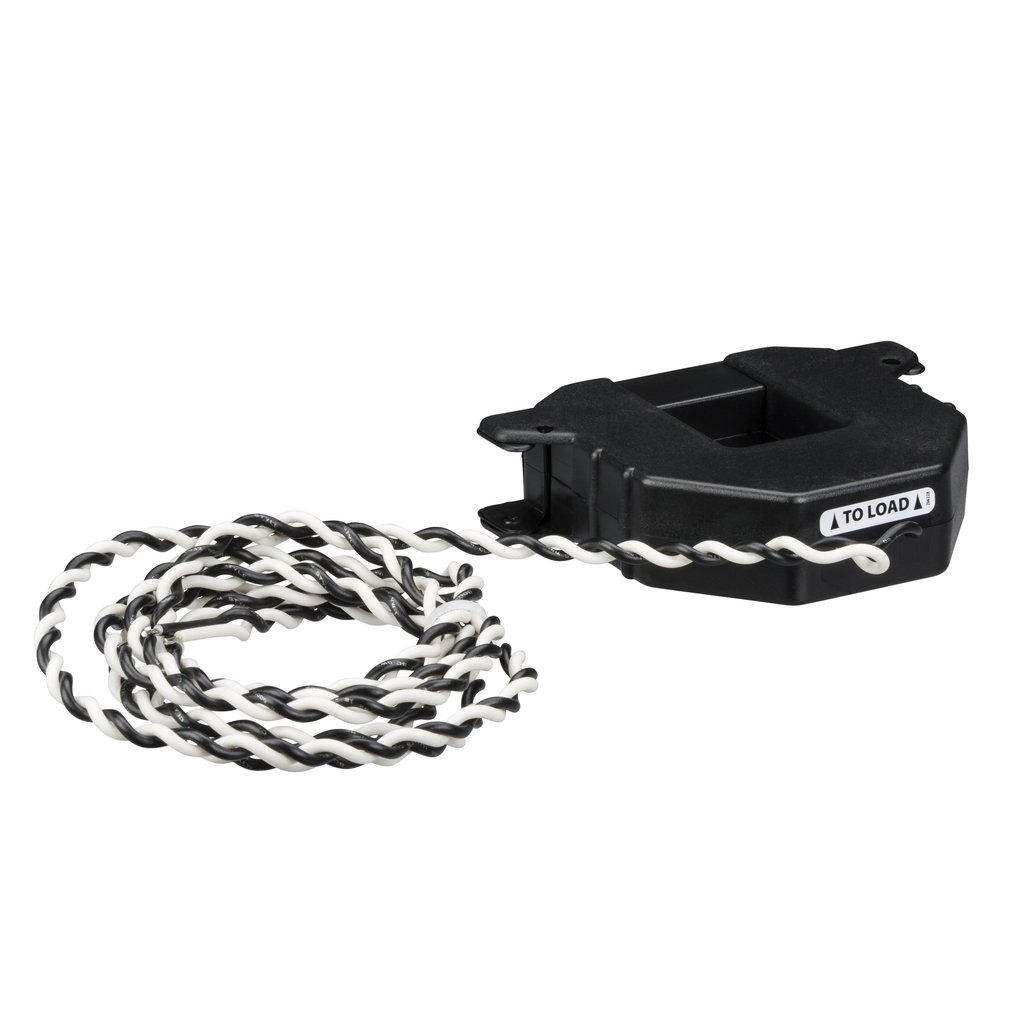

This current transformer, has a line rated current of 1600 A and a secondary current rating of 5 A. Size type 4 with core opening of 2.45 inches by 5.50 inches. Compatible with PowerLogic family of meters, and Acti 9 energy meters. Burden and accuracy class as follows class 1 maximum power 45 VA.
Square D – PowerLogic 3090 SCCT – split core CT – 1600/5 A – size 4 – 45 VA
Square D – PowerLogic 3090 SCCT – split core CT – 1600/5 A – size 4 – 45 VA
SKU: 9041119
