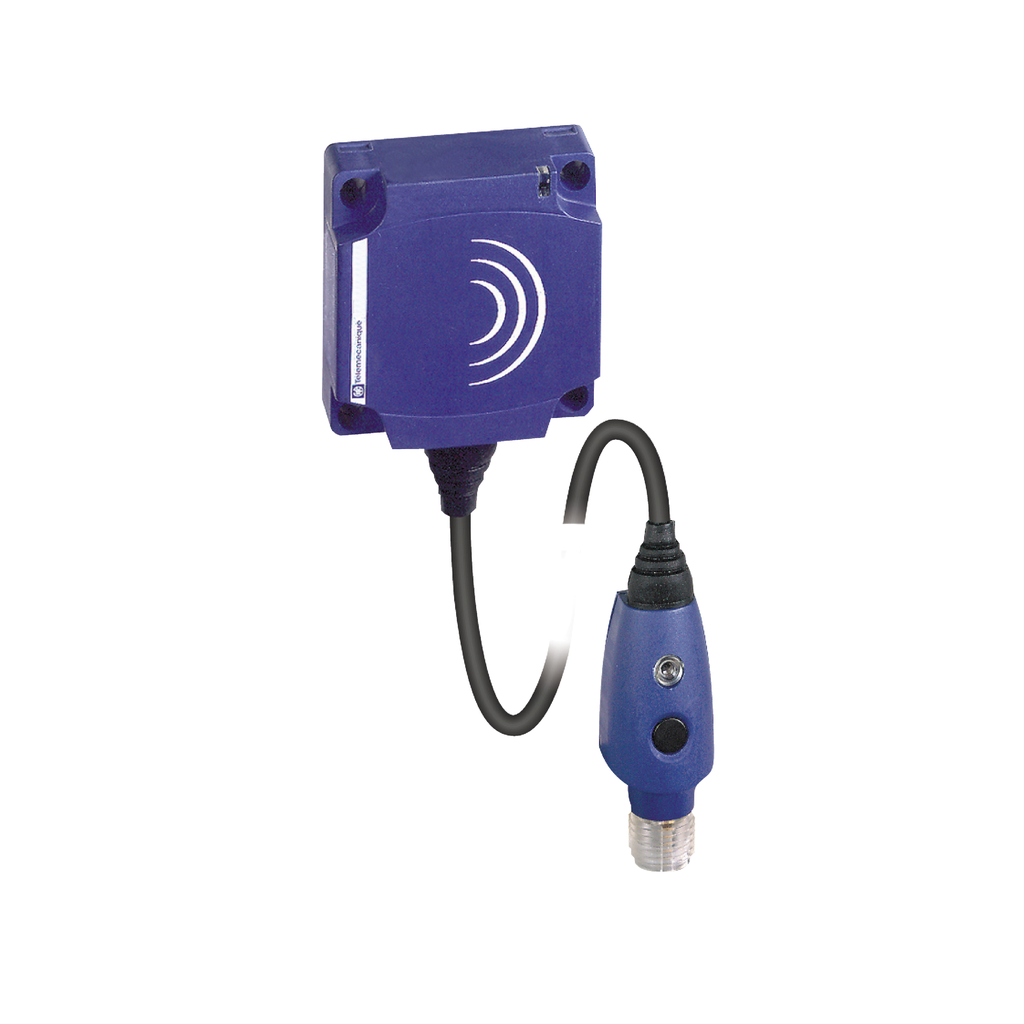

This XS inductive proximity sensor is designed for rotation monitoring, slip detection and shaft overload detection. It provides a simple, economical solution for detecting slip, belt breakage, coupling breakage and overload. This sensor is used in grinder/crusher, mixer, pump, centrifugal driver. and also conveyor belt, bucket elevator, Archimedean screw applications. This product is a 40mm x 40mm x 15mm sensor, flush mountable in metal. it features a plastic case and a remote 1/2-20 UNF connector on 0.15m flying lead. It has a sensing distance of 15mm. Two-wire, AC or DC supply, 12V to 24V, NC function.
Inductive proximity sensors XS, Rot. monitoring, 40x40x15, Sn15mm, 6…6000c/mn, 24…240VAC/DC, 1/2″ 0.15 m
Inductive proximity sensors XS, Rot. monitoring, 40x40x15, Sn15mm, 6…6000c/mn, 24…240VAC/DC, 1/2″ 0.15 m
