2601 reversing drum switches are designed to start and reverse motors by connecting them directly across the line. The devices can be used with squirrel cage and single-phase motors designed for reversing service. Can be used with AC or DC motors. Drum switches are field convertible from maintained to momentary operation. A variety of enclosures are available. This device has a NEMA 1 general purpose enclosure. Drum switches are UL listed and CSA certified for global applications.

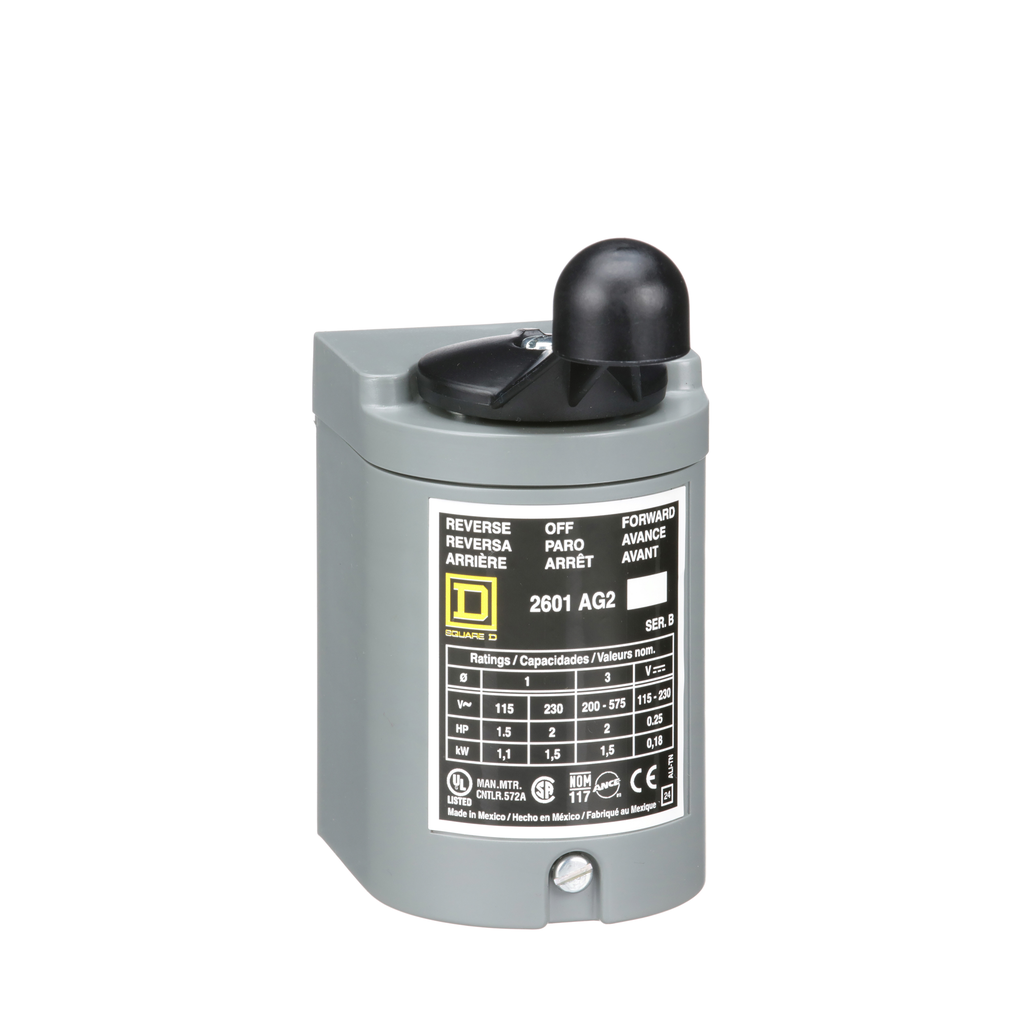

Switch, reversing drum, 2 HP at 230 VAC single phase, 2 HP at 575 VAC polyphase, handle operated, NEMA 1 enclosure
Switch, reversing drum, 2 HP at 230 VAC single phase, 2 HP at 575 VAC polyphase, handle operated, NEMA 1 enclosure
SKU: 15681941
Category: Automation & Control
Reviews (0)
Be the first to review “Switch, reversing drum, 2 HP at 230 VAC single phase, 2 HP at 575 VAC polyphase, handle operated, NEMA 1 enclosure” Cancel reply
