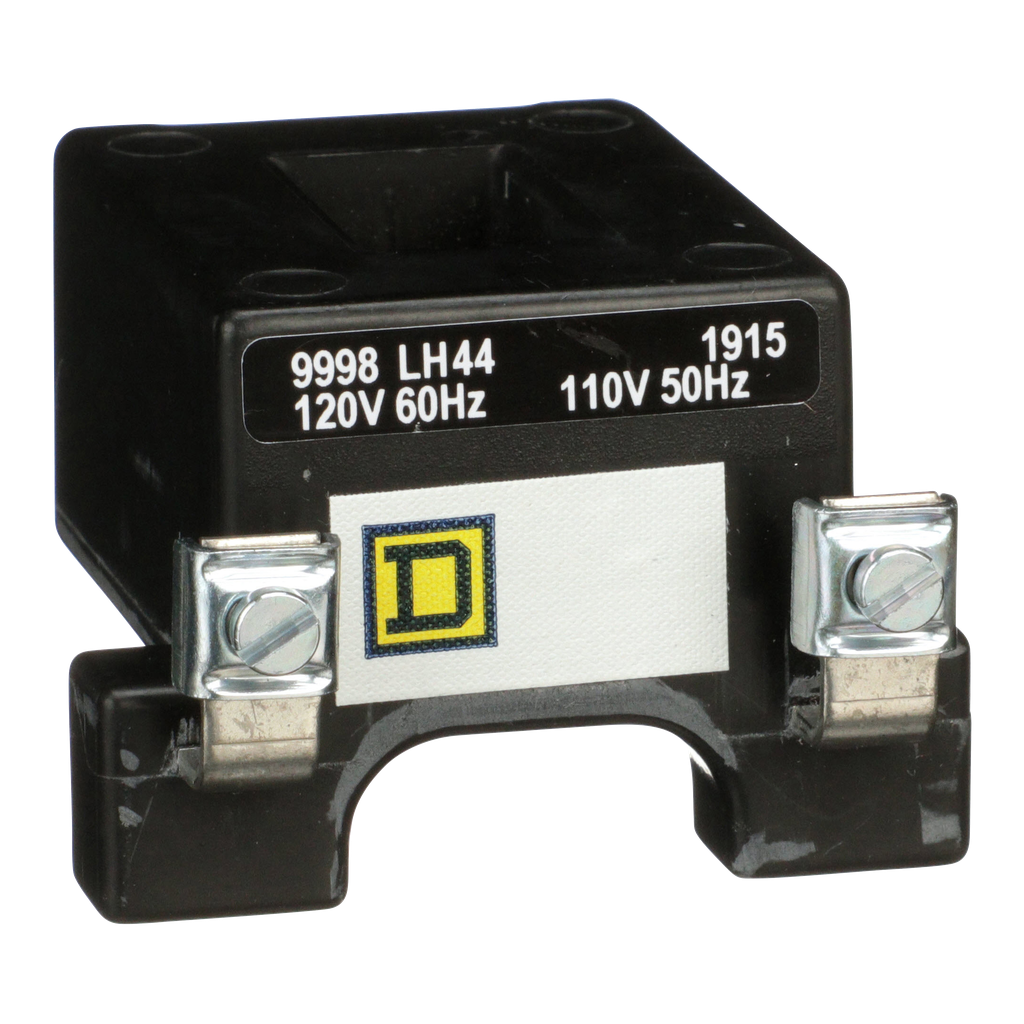

8903L multipole lighting contactors are for lighting control applications. Contactors can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The coil can be easily replaced in a 8903 L lighting contactor. By changing out the coil, the lighting contactor can be used in different control circuit voltage applications. This will also save the cost of a whole new contactor if the coil were to fail. This coil is used in an 8903L, 8 to 12 poles, and 8930LX, 6 to 12 poles, lighting contactors. The coil is rated for 277 VAC 60 Hz. The inrush power of this coil is 180 VA. It has an average sealed consumption of 35 VA. This coil has a height of 2.38 inches, a width of 2.11 inches and a depth of 1.46 inches. Coil is fully encapsulated to protect it. Coil has screw clamp connections.
Contactor, Type L, multipole lighting, replacement coil, 277 VAC 60 Hz, 8 to 12 poles
Contactor, Type L, multipole lighting, replacement coil, 277 VAC 60 Hz, 8 to 12 poles
SKU: 894363
Category: Automation & Control
