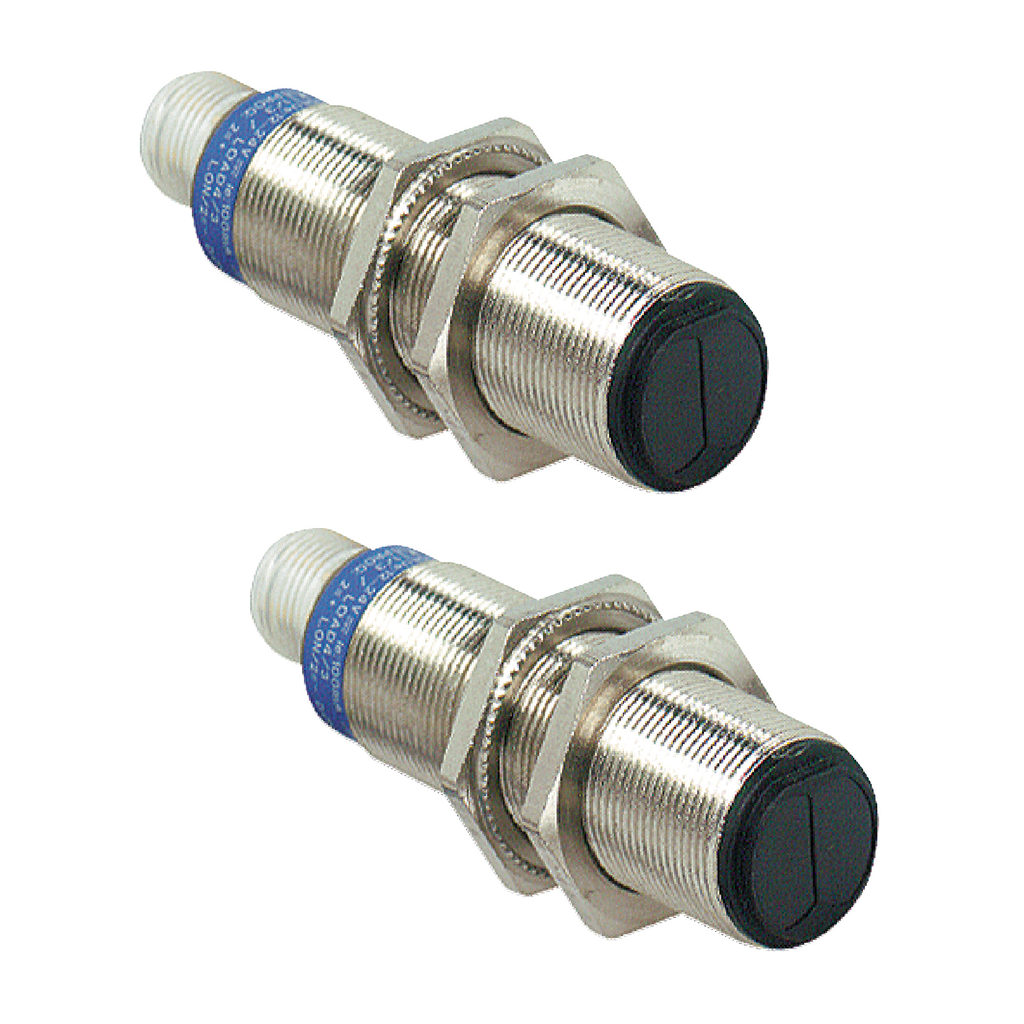

This product is part of the XU range, an offer of photoelectric sensors. This photoelectric sensor has a cylindrical M18 design with thru beam detection system. It supports 15m nominal sensing distance and 1 NO or 1 NC programmable PNP discrete output. The photoelectric sensor with a rated supply voltage of 12V to 24V DC with reverse polarity protection and no load current consumption of ≤50mA. It is furnished with 4-pin M12 male connector for electrical connection. It is an IP67 rated product. The enclosure is made of 304 stainless steel with PMMA lens. Its dimensions are 18mm (diameter) x 72mm (length). It weighs 0.13kg. Ideal for material handling, packaging, labelling, assembly, lift, escalators or food and beverage industries. This product is certified by CE, CSA and UL. The XU is for non contact sensing up to a hundred meters of objects of any shape and any type. The XU range offers a full line of photoelectric proximity sensors dedicated to material handling, packaging, labelling, lift, food and beverage industries.
Photoelectric sensors XU, XU2, thru beam, Sn 15 m, 12…24 VDC, M12
Photoelectric sensors XU, XU2, thru beam, Sn 15 m, 12…24 VDC, M12
SKU: 1307802
Category: Sensors & Switches
Reviews (0)
Be the first to review “Photoelectric sensors XU, XU2, thru beam, Sn 15 m, 12…24 VDC, M12” Cancel reply
