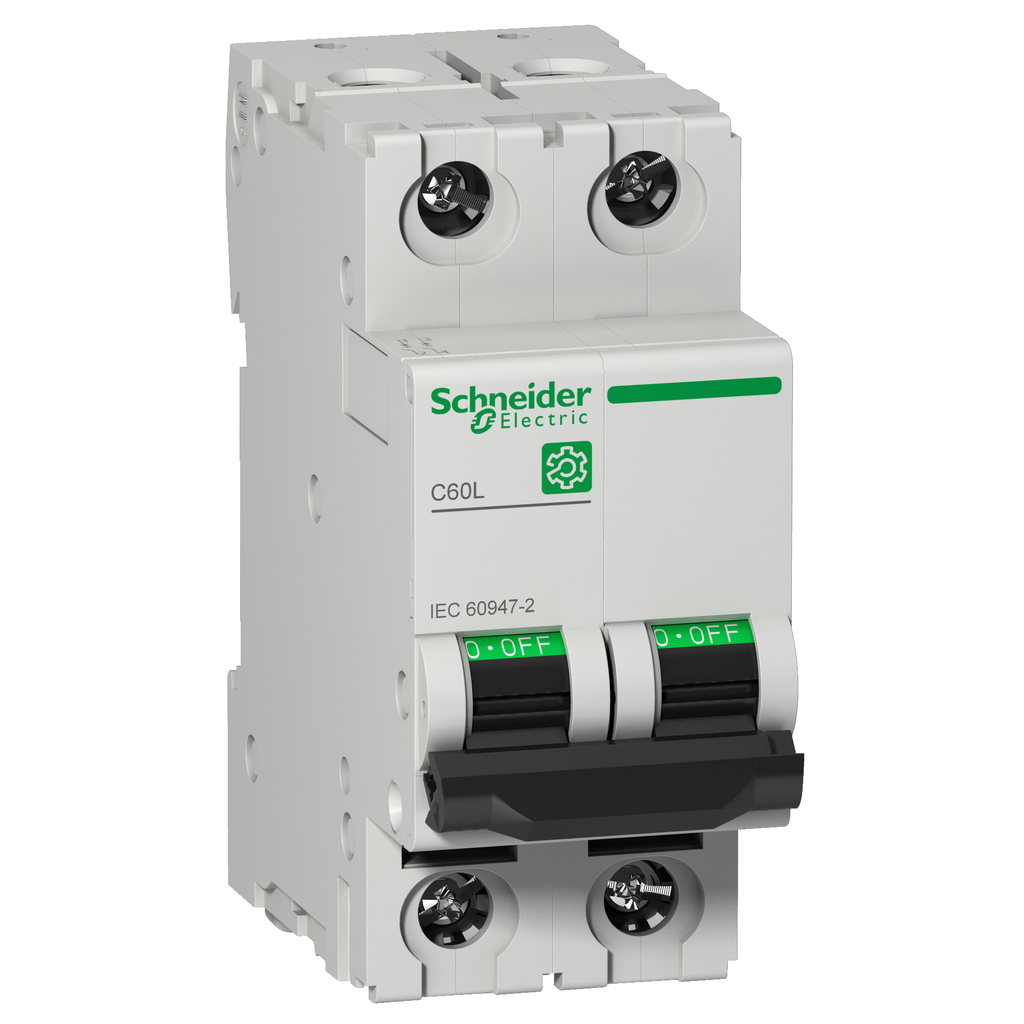

This Multi 9 C60L is a low voltage miniature circuit breaker (MCB). It is a 2P circuit-breaker with 2 protected poles, 1A rated current and C tripping curve. It can be mounted on DIN rail for modular installation. As circuit-breaker, its breaking capacity, according to IEC/EN 60947-2, is 50kA at 230VAC and 25kA at 400VAC. This circuit-breaker protects circuits against short circuit and overload currents. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. It becomes IP40 once in modular enclosure. its fast closing mechanism, overvoltage resistance and high performance limitation improve its service life. The tripping or position indication functions are remotely provided by adding electrical auxiliaries. The green mechanical indication guarantees the physical opening of the contacts to allow downstream maintenance.
Multi 9 – C60L – MCB – 2P – 1 A – C Curve – 415 V – 25 kA
Multi 9 – C60L – MCB – 2P – 1 A – C Curve – 415 V – 25 kA
