Cuny & Guerber
primary_image
Click to enlarge
HomeAutomation & Control Harmony, Miniature plug-in relay, 6 A, 4 CO, with LED, 230 V DC
Previous product
primary_image
Marked legend 8 x 27 mm for legend holder 30 x 40 mm - PARADA GENERAL
Back to products
Next product
primary_image
Manual Starter, integral horsepower, NEMA M0, 600 VAC, 2 pole, 2 HP at 230 VAC, single phase, no indicator, NEMA 4/4X

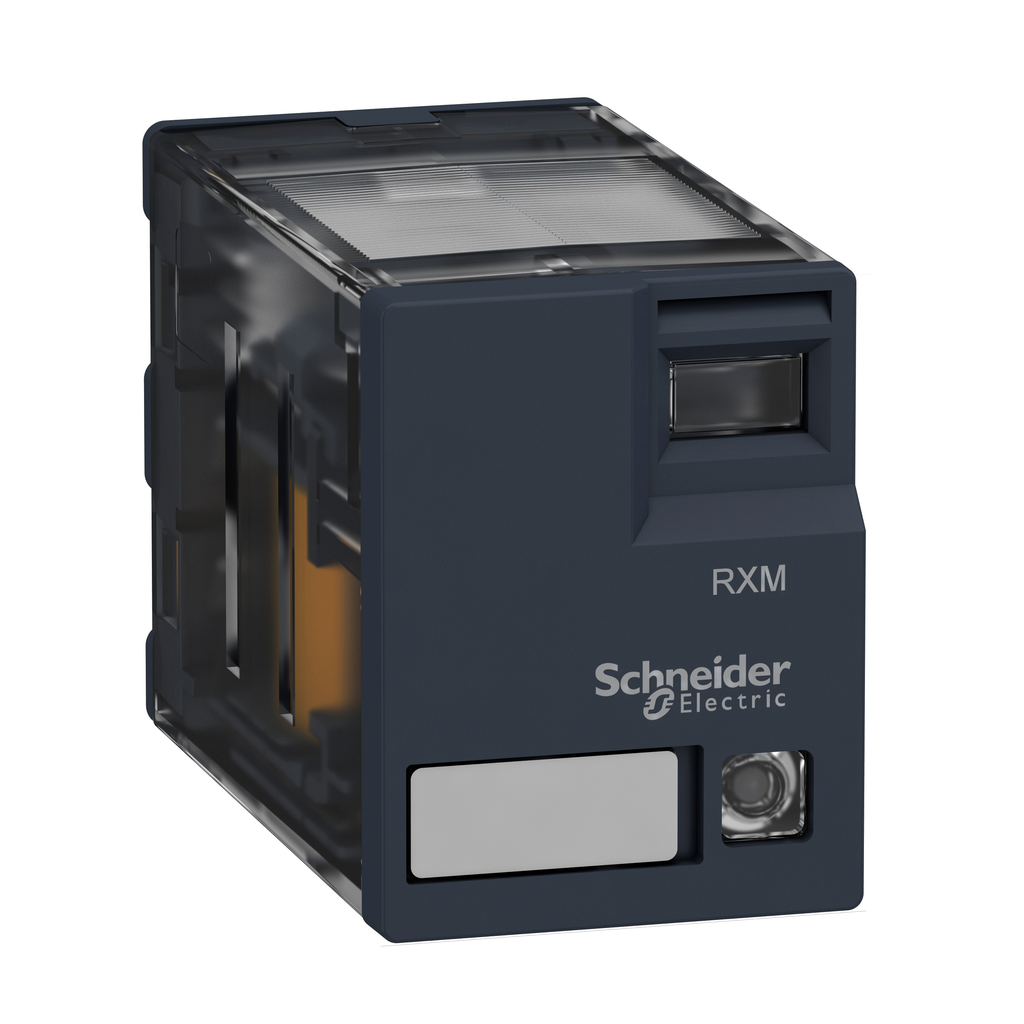

Harmony, Miniature plug-in relay, 6 A, 4 CO, with LED, 230 V DC

Harmony, Miniature plug-in relay, 6 A, 4 CO, with LED, 230 V DC

SKU: 511328 Category: Automation & Control
Share
Facebook Twitter Pinterest linkedin Telegram
  • Description
  • Reviews (0)
Description

RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 4 C/O relay with current rating of 6A, control circuit voltage of 230 V AC 50/60 Hz. It also offers a mechanical indicator where an orange flag indicates the relay contact status. A green LED on the front will illuminate when the relay is on. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd’s, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Harmony, Miniature plug-in relay, 6 A, 4 CO, with LED, 230 V DC” Cancel reply

Your email address will not be published. Required fields are marked *
