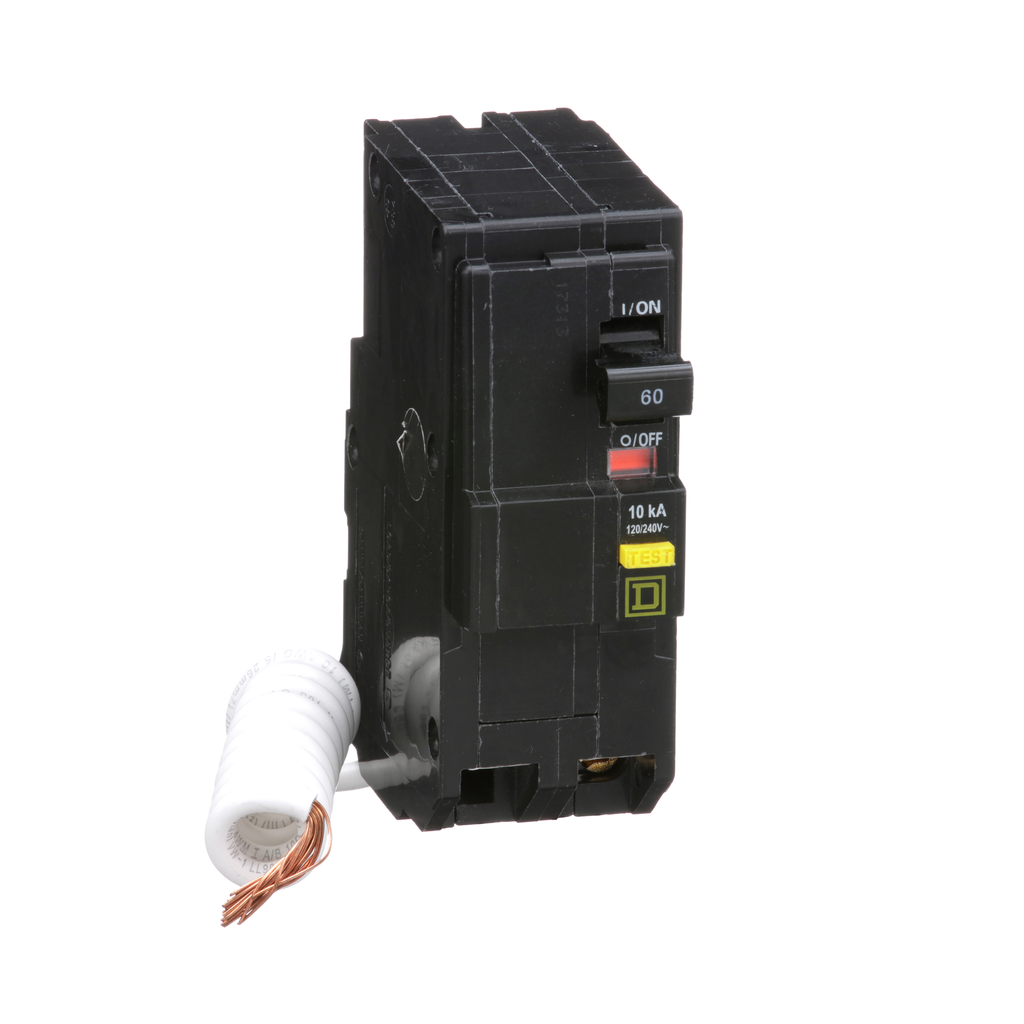

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 60A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes a 6mA ground fault A with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555 This circuit breaker has Class A 6mA ground fault with a pigtail. The box lug connectors will accept one 14 AWG to 6 AWG copper or 12 AWG to 4 AWG aluminum wire. This circuit breaker has a height of 4.12 inches, a width of 1.50 inches and a depth of 2.91 inches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Mini circuit breaker, QO, 60A, 2 pole, 120/240VAC, 10kA, 6mA grd fault A, pigtail, plug in mount
Mini circuit breaker, QO, 60A, 2 pole, 120/240VAC, 10kA, 6mA grd fault A, pigtail, plug in mount
SKU: 894382
Category: Circuit Breakers
