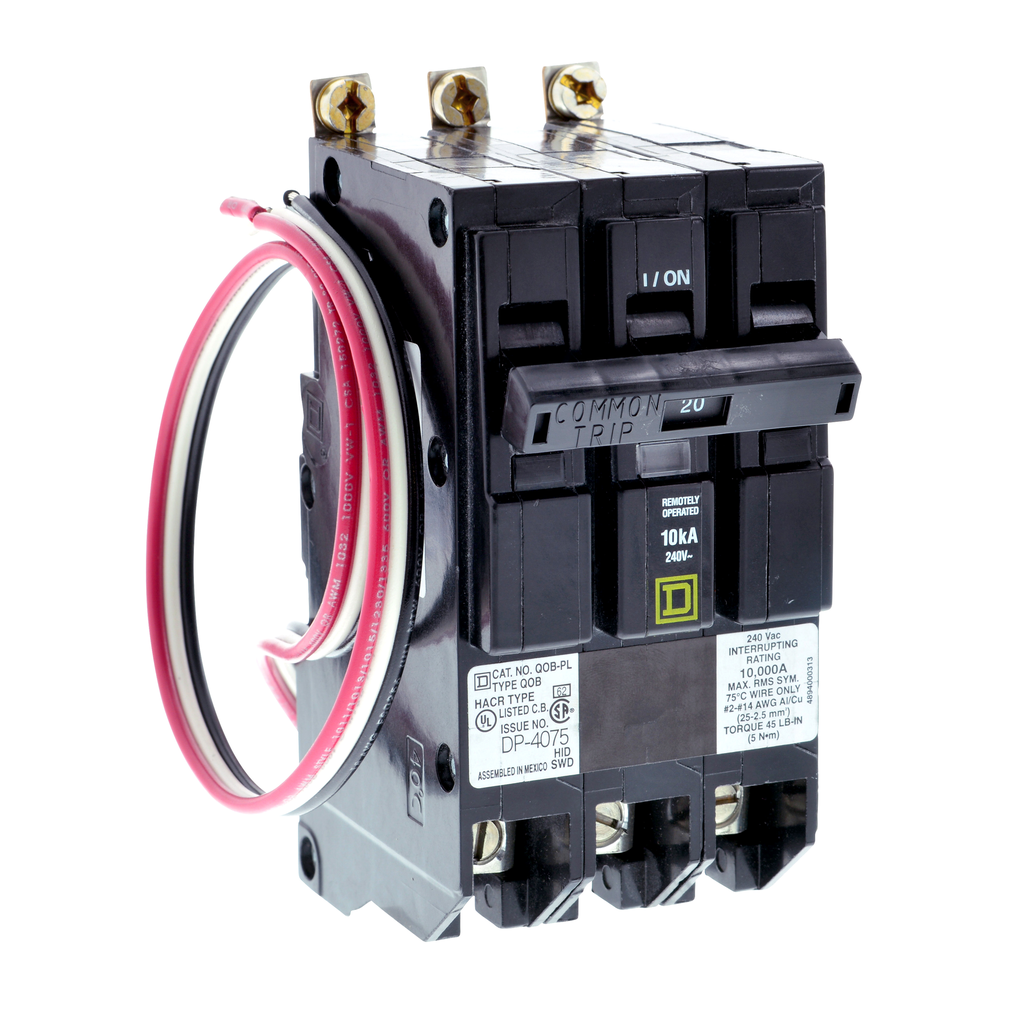

QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 3 pole QO circuit breaker is rated at 20A at 240VAC. This unit provides 10kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product has a Powerlink feature. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Mini circuit breaker, QO, 20A, 3 pole, 240VAC, 10kA, Powerlink, bolt on mount
Mini circuit breaker, QO, 20A, 3 pole, 240VAC, 10kA, Powerlink, bolt on mount
SKU: 3024836
Category: Circuit Breakers
Reviews (0)
Be the first to review “Mini circuit breaker, QO, 20A, 3 pole, 240VAC, 10kA, Powerlink, bolt on mount” Cancel reply
