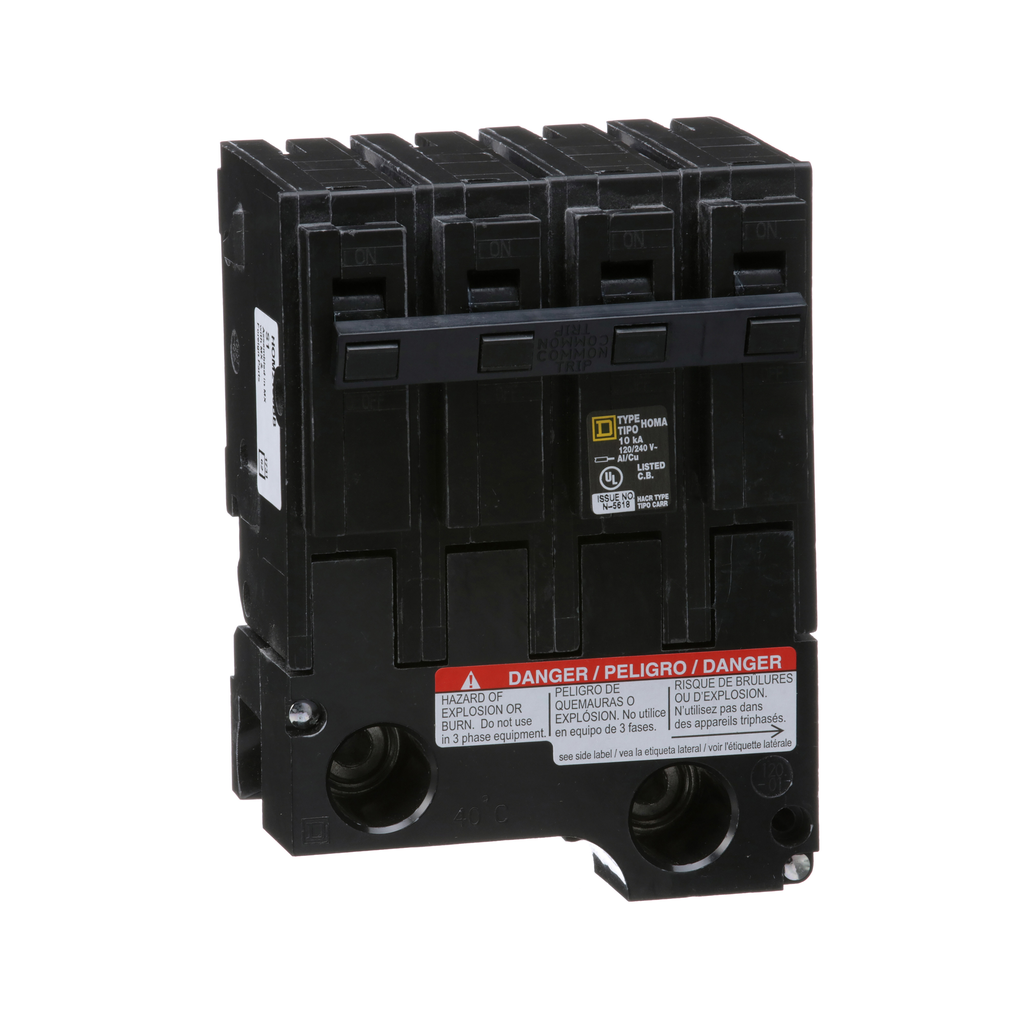

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 175 A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connections are box lugs that will accept 1 wires. The box lugs will accept a wire range of 4 AWG to 300 kcmil copper or aluminum wire. This circuit breaker has a height of 5.39 inches, a width of 3.98 inch and depth of 3.13 inches. HOM Homeline miniature circuit breakers are UL Listed.
Mini branch circuit breaker, Homeline, 175A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, UL
Mini branch circuit breaker, Homeline, 175A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, UL
SKU: 14759946
Category: Circuit Breakers
Reviews (0)
Be the first to review “Mini branch circuit breaker, Homeline, 175A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, UL” Cancel reply
