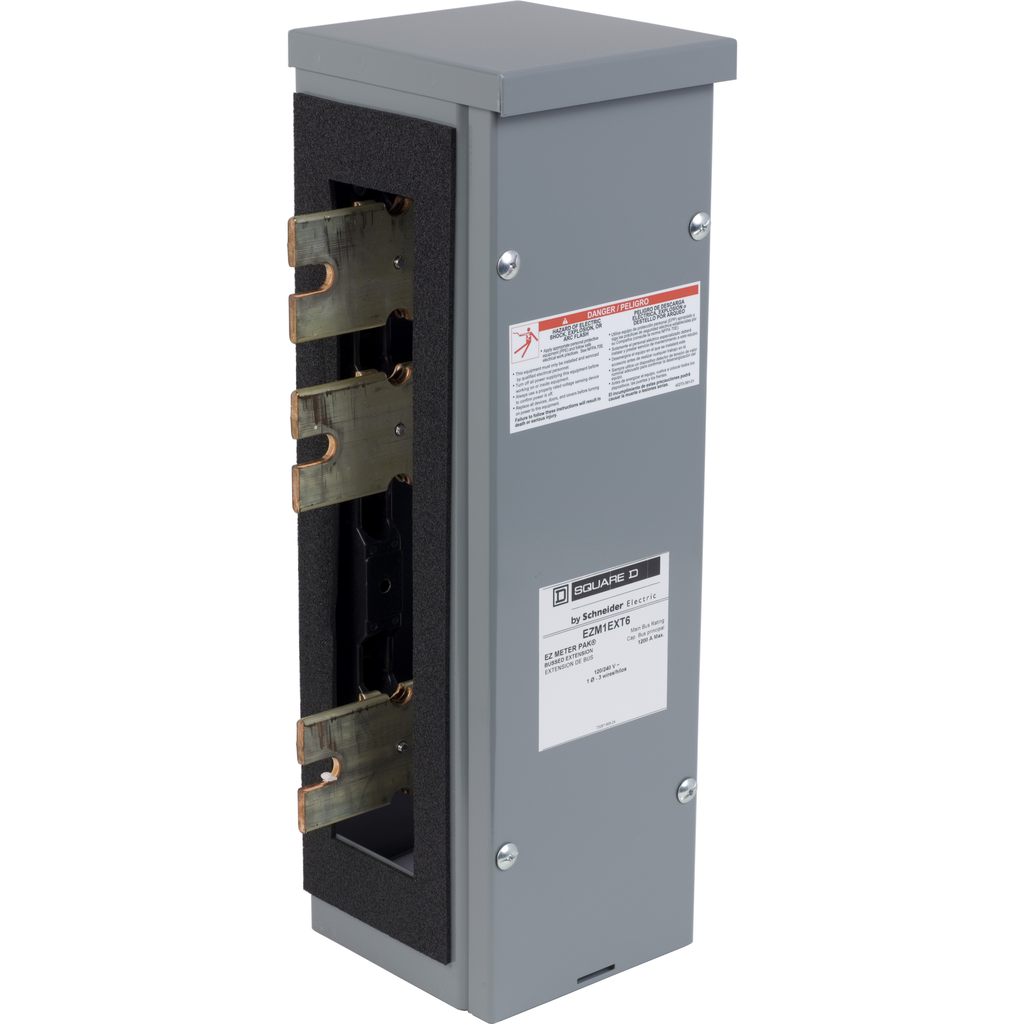

Square D™ EZ Meter-Pak™ Meter centers bussed extensions provide separation between enclosures. This is used when avoidance of building obstructions is needed. The bussed extension occupies an area 19.25 in (489 mm), H x 12.0 in (304 mm) or 6.0 in (152 mm) W, and is positioned vertically in line with the horizontal cross bus of a main and branch unit enclosures. Extensions provide additional space between the main device and the branch unit where needed to meet local utility requirements. Bus extension is supplied with 1200 A horizontal main cross bus and provisions for padlocking or sealing by the utility.
Meter accessory, EZ Meter-Pak, 1200 A bus extension, 1 phase, 3 wire, indoor/outdoor, copper, 12 in W
Meter accessory, EZ Meter-Pak, 1200 A bus extension, 1 phase, 3 wire, indoor/outdoor, copper, 12 in W
SKU: 8967037
Category: Meters & Accessories
Reviews (0)
Be the first to review “Meter accessory, EZ Meter-Pak, 1200 A bus extension, 1 phase, 3 wire, indoor/outdoor, copper, 12 in W” Cancel reply
