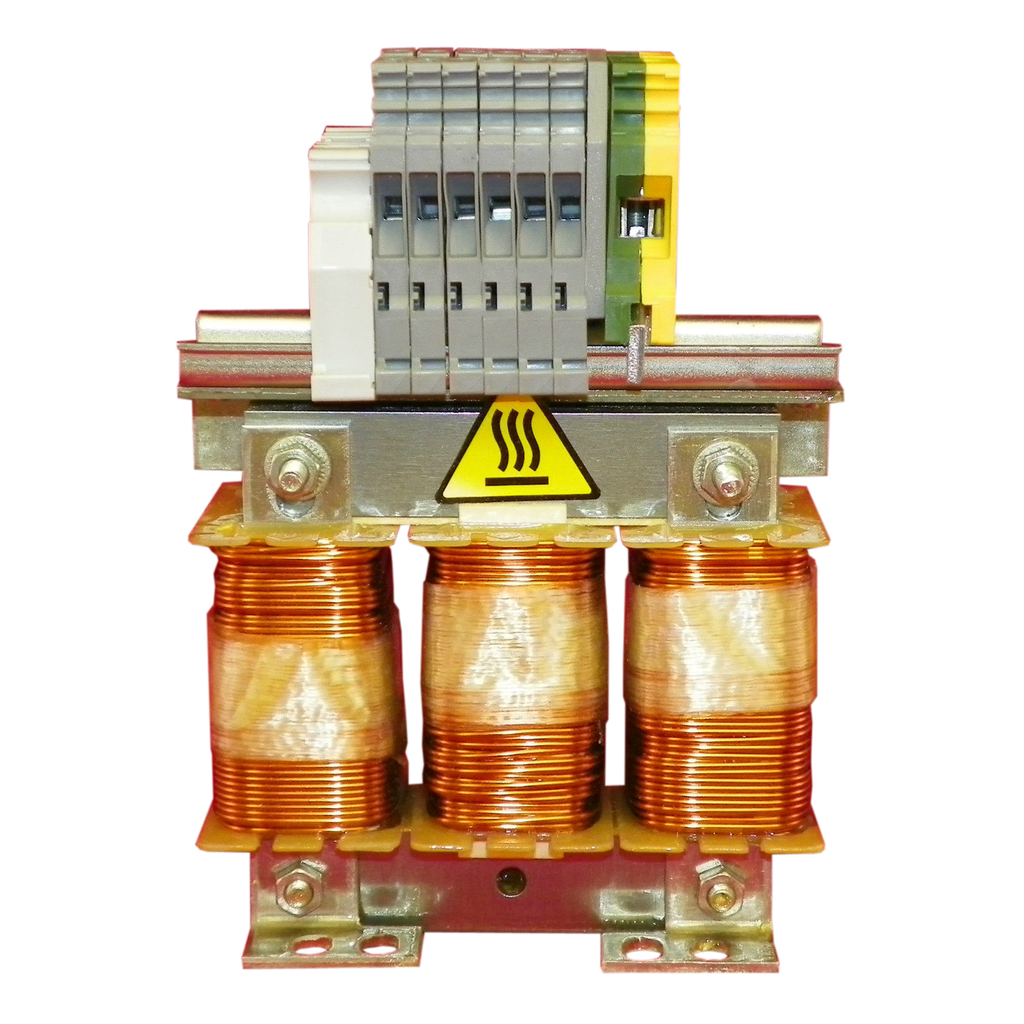

This line choke is an option for variable speed drives of Altivar range. Its rated current is equal to 10A. It provides improved protection against overvoltages on the line supply and contributes to reduce harmonic distortion of the current produced by the drive. Its protection index is IP00. It has an inductance value of 4mH. It weighs 3kg and its dimensions are, 130mm wide, 155mm high, 90mm deep. Its use is particularly recommended in case of close connection of several drives in parallel, line supply with significant disturbance from other equipment (interference, overvoltages), line supply with voltage imbalance between phases.
line/motor choke – 4 mH – 10 A – 3 phases – 65 W – for variable speed drive
line/motor choke – 4 mH – 10 A – 3 phases – 65 W – for variable speed drive
SKU: 496217
Category: Automation & Control
Reviews (0)
Be the first to review “line/motor choke – 4 mH – 10 A – 3 phases – 65 W – for variable speed drive” Cancel reply
