HomeSensors & Switches Limit switch, Limit switches XC Standard, XCPR, thermoplastic plastic roller lever plung. Hor, 1NC+1 NO, slow, M20
Previous product
Placeholder
Motion controller LMC400 for robot - 320 license points included
Back to products
Next product
primary_image
ClimaSys forced vent. IP54, 850m3/h, 400V, with outlet grille and filter G2

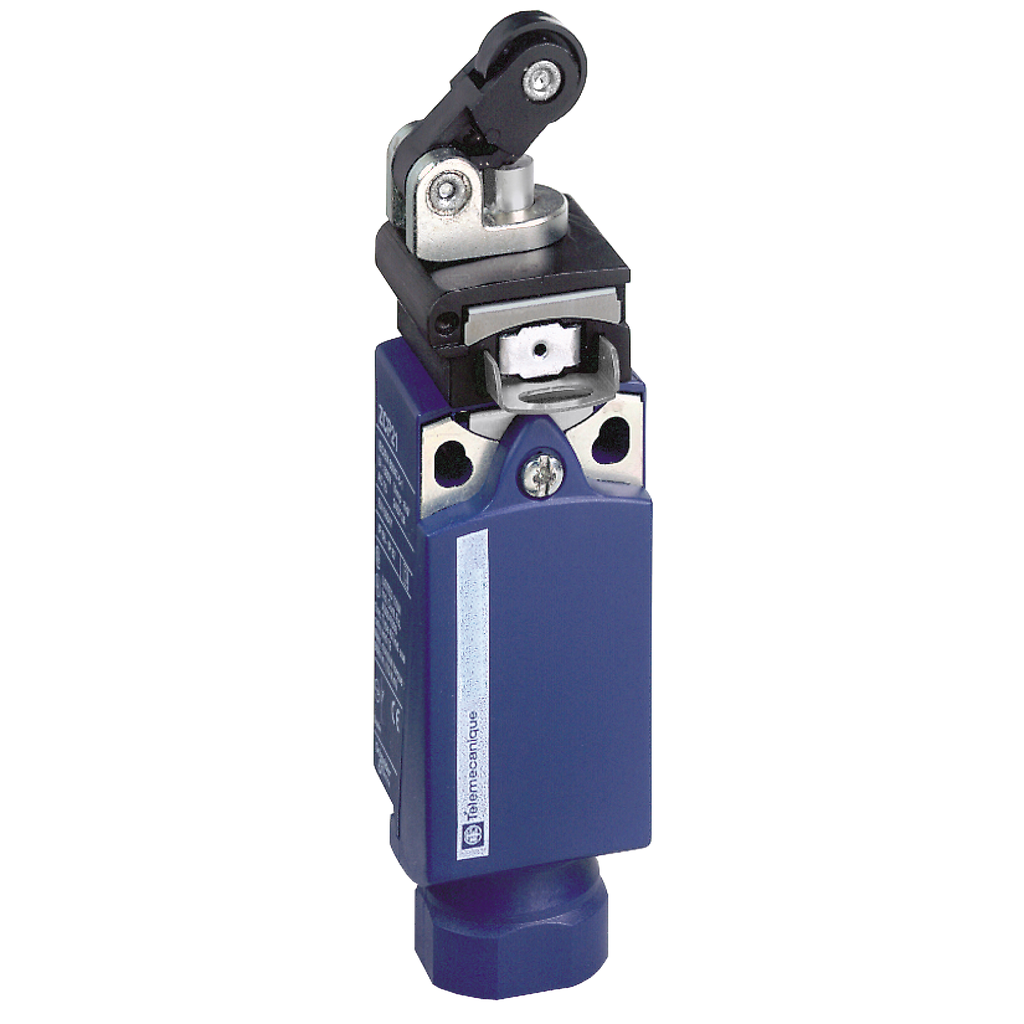

Limit switch, Limit switches XC Standard, XCPR, thermoplastic plastic roller lever plung. Hor, 1NC+1 NO, slow, M20

Limit switch, Limit switches XC Standard, XCPR, thermoplastic plastic roller lever plung. Hor, 1NC+1 NO, slow, M20

SKU: 4339376 Category: Sensors & Switches
Share
Facebook Twitter Pinterest linkedin Telegram
  • Description
  • Reviews (0)
Description

This product is part of the XC Standard range, an offer of limit switches. This limit switch is a device that converts a mechanical motion into an electrical control signal. It has 1 NC and 1 NO, form Zb, slow break, break before make contacts. It provides switch actuation of 30° cam. The limit switch has a spring return metal plunger and supports lateral approach in 1 directions. The movement of the limit switch operating head is linear. It is furnished with screw clamp terminals for electrical connection. It is an IP66/IP67/IK04 rated product. This linear head limit switch has a fixed body, made of Zamak. Its dimensions are 31mm (width) x 30mm (depth) x 65mm (height). It weighs 0.125kg. It is intended for all industrial machine applications such as packaging, materials handling, conveying, machining, food and beverage, service sector, etc. This product is certified by CSA and UL. It meets IEC 60947-5-1, CSA C22.2 No 14, EN 60947-5-1, UL 508, EN 60204-1 and IEC 60204-1 standards. Limit switches for contact sensing of inflexible objects. An offer of positive opening snap action contacts for a simpler and safer machine design. Ex OsiSwitch, IEC standard format limit switches consist of products designed according to EN 50047, EN 50041 as well as popular XCM and XCKM limit switches ranges.
