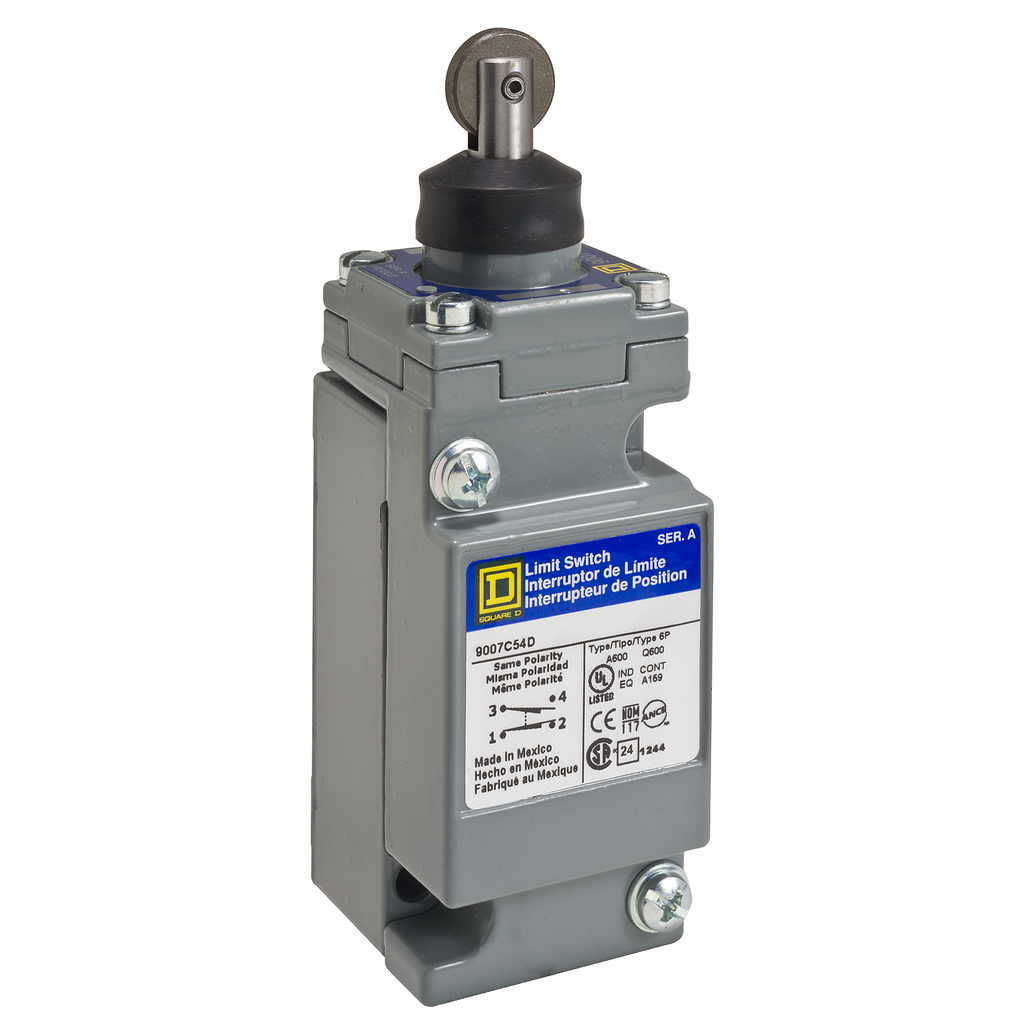

This product is part of the Nema Limit Switches range, an offer of heavy duty metal limit switches. The limit switch is a device that converts a mechanical motion into an electrical control signal. It has 2 normally closed + 2 normally opened, DPDT-DB (double pole double throw, double break) form ZZ, snap action contacts. The steel spring return roller plunger operator supports a lateral approach, 2 directions and switch actuation by 30° cam. It is furnished with screw clamp terminals for electrical connection. It offers mechanical durability of about 10 million operating cycles and electrical durability of about 1 million operating cycles. It is a safety switch with a rated operating current of 1.2A at 600V AC, 1.5A at 480V AC, 3A at 240V AC, 6A at 120V AC, 0.11A at 250V DC, 0.55A at 125V DC. It is an IP67 and NEMA 1/2/4/12/13 rated product. This NEMA limit switch has plug-in body made of metal. Its dimensions are 39.37mm (width) x 45.47mm (depth) x 126.49mm (height) and weighs 0.57kg. It is suitable for use in process machinery applications such as machine tools, plastic, rubber and moulding, printing, textile, pulp, paper and wood. This product is certified by UL, CSA and CE. It complies with UL 508, NEMA 250, IEC 60947, EN 60947-5-1, EN 60947-1 and C22-2-14-95 standards. Compact and standard, 39mm plug-in body for hazardous locations. Compliant with US and international standards, the 9007 series limit switches can withstand the impact of heavy industry. This constitutes a comprehensive range of limit switches rigged and dependable built with unparalleled quality.
Limit switch, 9007, 600 V 10amp c +options
Limit switch, 9007, 600 V 10amp c +options
SKU: 15502036
Category: Sensors & Switches
