HomeSensors & Switches Inductive proximity sensors XS, inductive sensor XS9 M18, L64mm, full SS 316L, Sn20 mm, 12…24 VDC, M12
Previous product
Placeholder
SAFETY INTLK 300VAC 5AMP XCS + OPTION
Back to products
Next product
primary_image
M6 combiplas slide nut for 60 mm C-shaped rail (C60 type) - Supply: 50 units

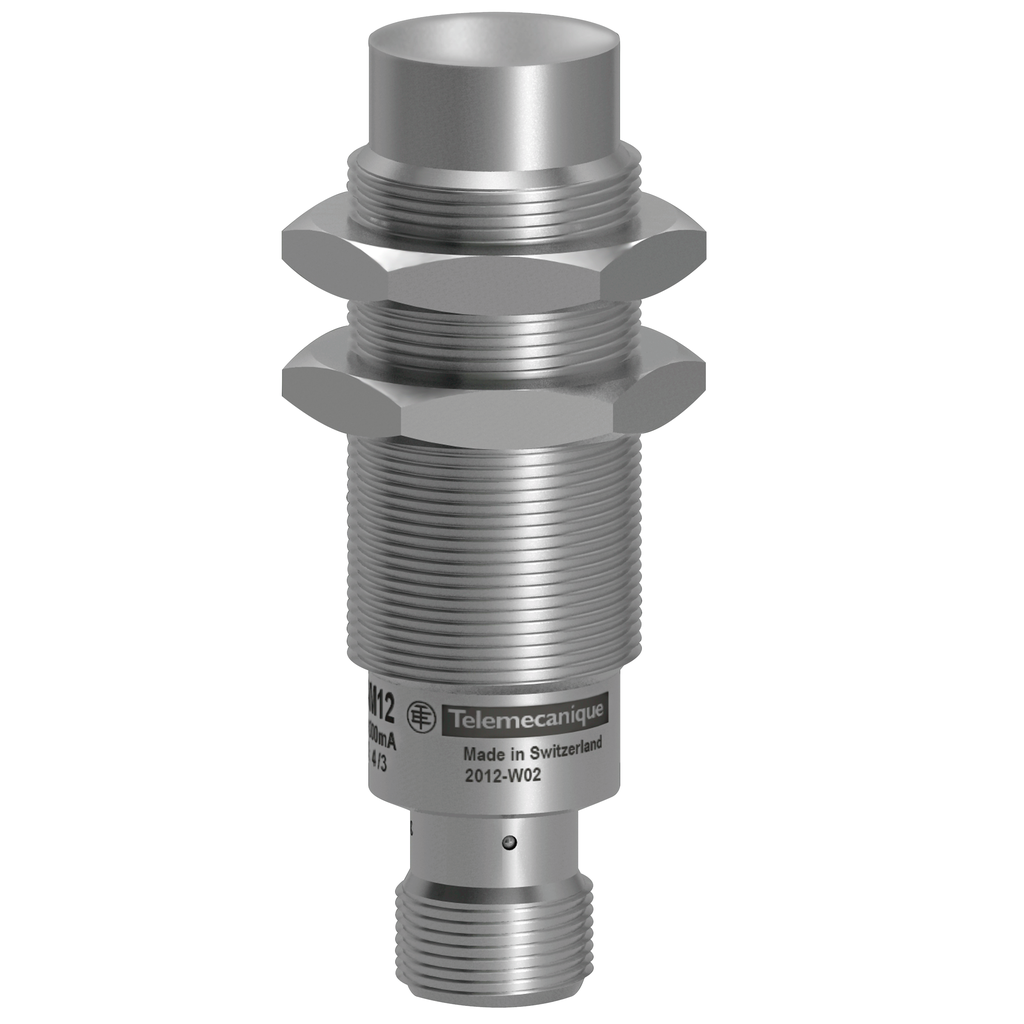

Inductive proximity sensors XS, inductive sensor XS9 M18, L64mm, full SS 316L, Sn20 mm, 12…24 VDC, M12

Inductive proximity sensors XS, inductive sensor XS9 M18, L64mm, full SS 316L, Sn20 mm, 12…24 VDC, M12

SKU: 1422359 Category: Sensors & Switches
Share
Facebook Twitter Pinterest linkedin Telegram
  • Description
  • Reviews (0)
Description

The XS range is an offer of inductive proximity sensors for the detection of metal objects up to 60mm without physical contact. The oscillator produces an alternating electromagnetic field that exits the detection area of the sensor. Any metallic object penetrating this field is then detected. This threaded cylindrical (M18) inductive proximity sensor is designed for food and beverage industries. It is made of stainless steel 316L and it is non flush mountable. Its nominal sensing distance is 20mm, it supports 1 normally open PNP discrete output and it has a switching frequency of 200Hz. It works in a temperature range of -25°C and +85°C, it is dustproof, waterproof (IP68), and withstands high pressure and steam cleaning (IP69K). It is made of stainless steel 316L. It measures 64mm (length) x 18mm (diameter) and weighs 0.051kg. This inductive proximity sensor is designed to be used in food and beverage industries. This sensor is certified cULus and Ecolab. The main advantage of the inductive detection offered by the sensors of the XS range is that there is no physical contact with the object to be detected.

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Inductive proximity sensors XS, inductive sensor XS9 M18, L64mm, full SS 316L, Sn20 mm, 12…24 VDC, M12” Cancel reply

Your email address will not be published. Required fields are marked *
