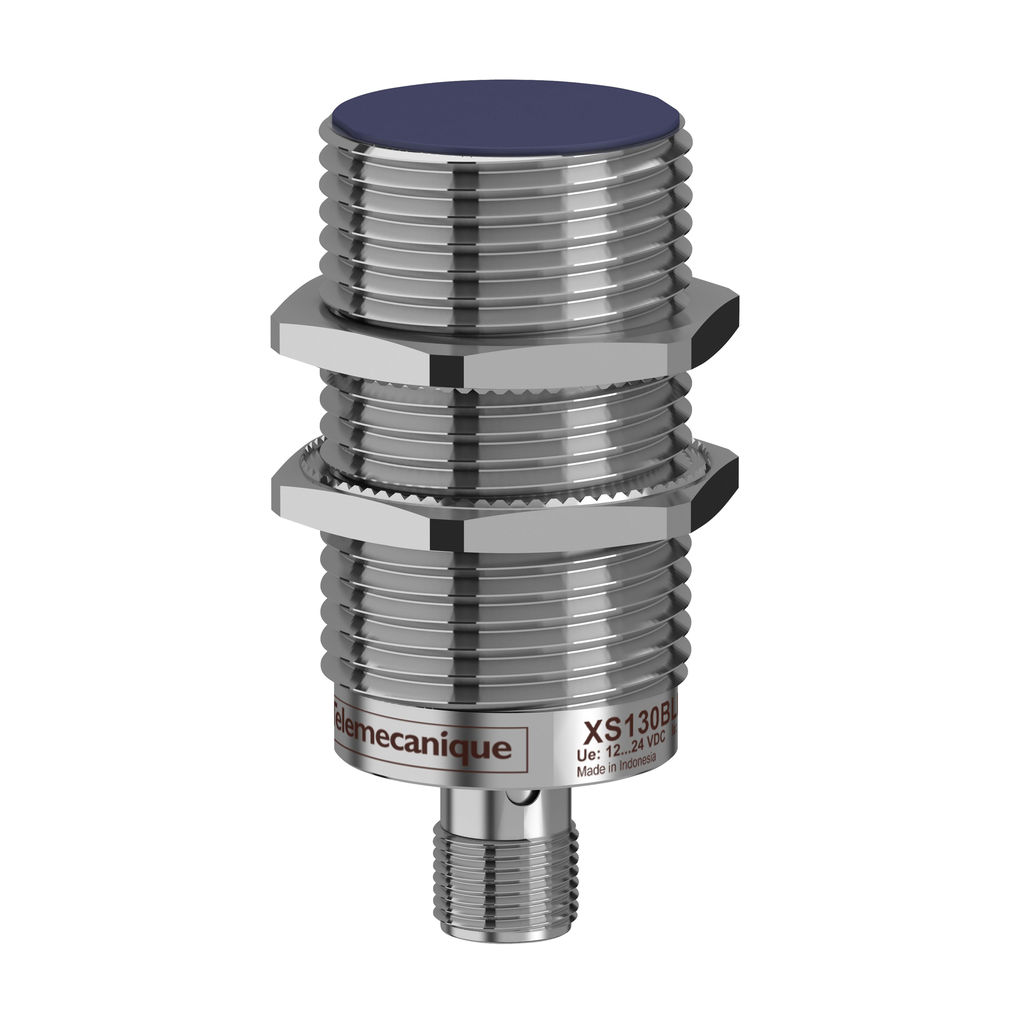

The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a cylindrical, flush mountable metal sensor. Diameter 30mm, threaded M30 x 1.5. It features a metal cylindrical boby a M12 connector. It has a sensing distance of 10mm. Three-wire, DC supply, 12V to 24V, NO function, NPN solid-state output .
Inductive sensor XS1 M30 – L68mm – brass – Sn10mm – 12..24VDC – M12
Inductive sensor XS1 M30 – L68mm – brass – Sn10mm – 12..24VDC – M12
SKU: 3073602
Category: Sensors & Switches
