HomeSensors & Switches Inductive proximity sensors XS, inductive sensor XS1 M12, L50mm, brass, Sn4mm, 12…24 VDC, M12
Previous product
Placeholder
TSX Micro - mini extension rack
Back to products
Next product
primary_image
standalone processor, Modicon M580, 4MB, 61 Ethernet devices, 4 local IO racks of 1024 digital, 256 analog

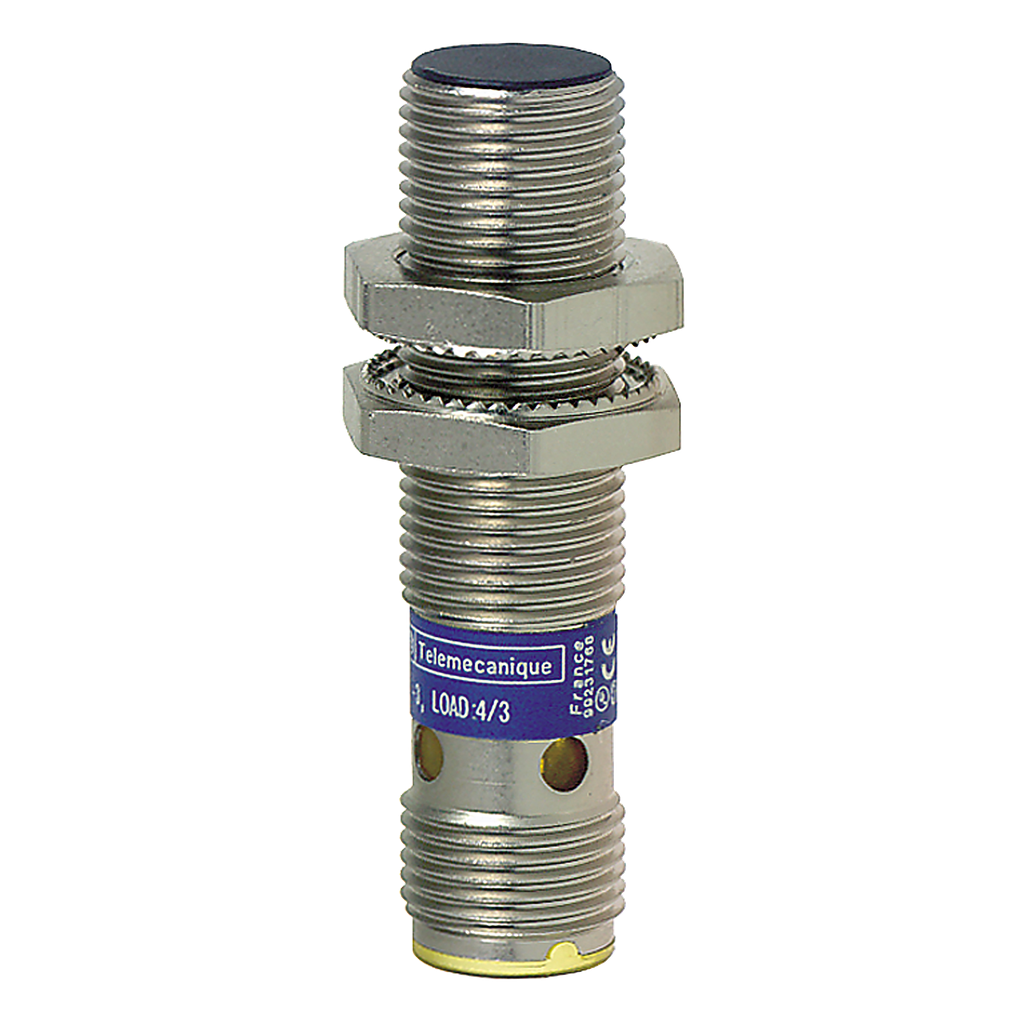

Inductive proximity sensors XS, inductive sensor XS1 M12, L50mm, brass, Sn4mm, 12…24 VDC, M12

Inductive proximity sensors XS, inductive sensor XS1 M12, L50mm, brass, Sn4mm, 12…24 VDC, M12

SKU: 1278228 Category: Sensors & Switches
Share
Facebook Twitter Pinterest linkedin Telegram
  • Description
  • Reviews (0)
Description

This product is part of the XS range, an offer of inductive proximity sensors. This general purpose inductive proximity sensor in XS1 cylindrical M12 design. It is flush mountable and has frontal detection face. It supports 4mm nominal sensing distance and 1 normally closed PNP discrete output. It is furnished with 4-pin M12 male connector for electrical connection and 1 LED for output state. It is an inductive proximity sensor with a rated supply voltage of 12V to 24V DC with reverse polarity protection, a no-load current consumption of 0mA to 10mA and a switching frequency of ≤2500Hz. It is an IP67 and IP69K rated product. The enclosure is made of nickel plated brass. Its dimensions are 50mm (Length) x 12mm (Height) and weighs 0.02kg. It is suitable for railway, mobile equipment, lifts, escalators, hoisting, material handling/conveying/logistics, material working/machine tools, packaging, robotics, food and beverage industries. This product is certified by CE, UL and CSA. It compliant with international standards, certifications in standard and increased range. Ex Osiprox, OsiSense XS and XT inductive and capacitive proximity sensors for non-contact sensing. Inductive proximity sensors technology for non-contact sensing of metal objects up to 60mm.

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Inductive proximity sensors XS, inductive sensor XS1 M12, L50mm, brass, Sn4mm, 12…24 VDC, M12” Cancel reply

Your email address will not be published. Required fields are marked *
