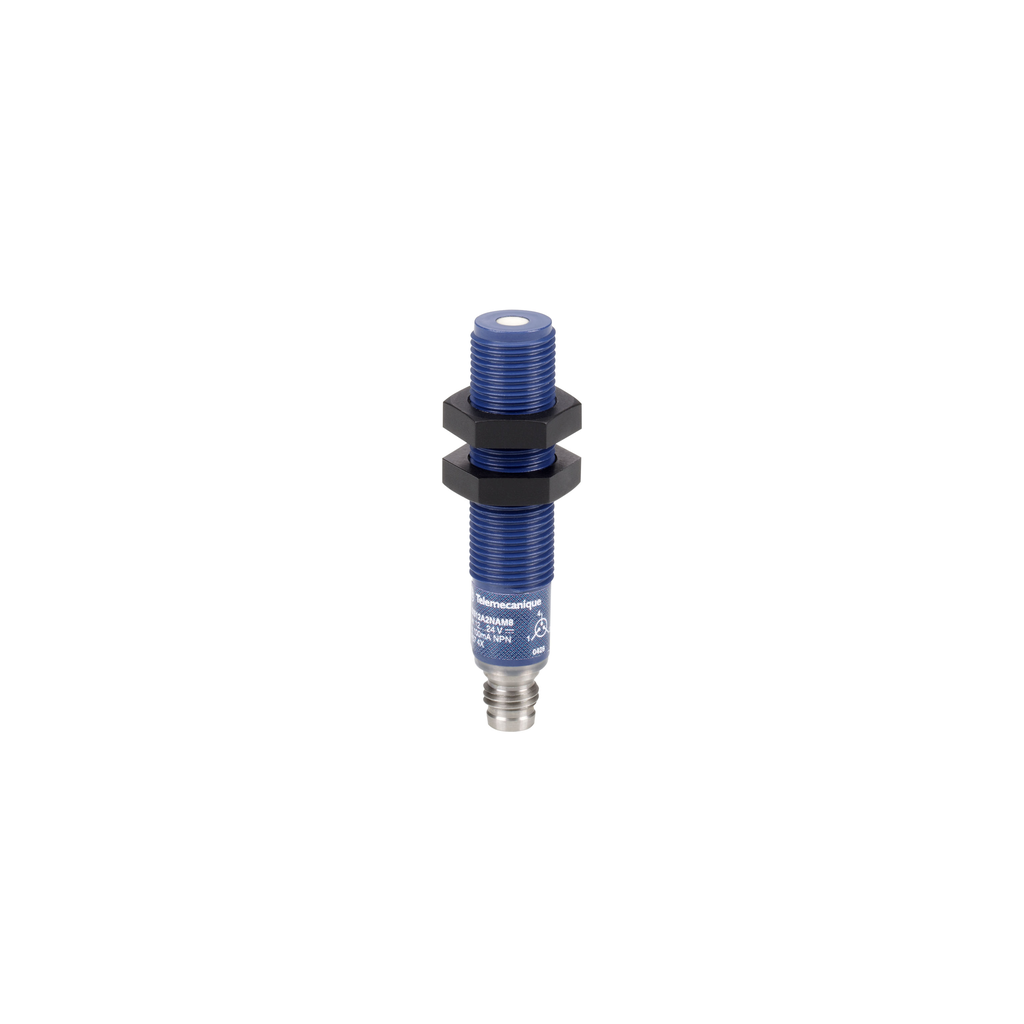

This product is part of the Hyde Park range, an offer of ultrasonic sensors. This ultrasonic sensor has a cylindrical M12 design and fixed sensing type window. It supports 50.8mm nominal sensing distance and 1 NO PNP/NPN discrete output. The ultrasonic sensor with a rated supply voltage of 12V to 24V DC with reverse polarity protection and current consumption of 25mA. It is furnished with 4-pin M8 male connector for electrical connection. It is an IP67 and NEMA 4X rated product. The enclosure is made of ULTEM with glass epoxy front. Its dimensions are 58.16mm (length) x 12mm (width) x 12mm (height). It weighs 0.011kg. It is suitable for packaging, automotive, food and beverage processing applications. This product is certified by CE and UL. The Hyde Park ultrasonic sensors operate in diffuse, reflex and thru beam modes. This range of sensors even includes long distance detection models. Hyde Park ultrasonic sensors perform contactless, reliable, and high performance detection regardless of the target’s shape, texture, color, or transparency.
Hyde Park, Ultrasonic sensor, discrete, 12 mm barrel, 12 24 V DC
Hyde Park, Ultrasonic sensor, discrete, 12 mm barrel, 12 24 V DC
SKU: 3469410
Category: Automation & Control
