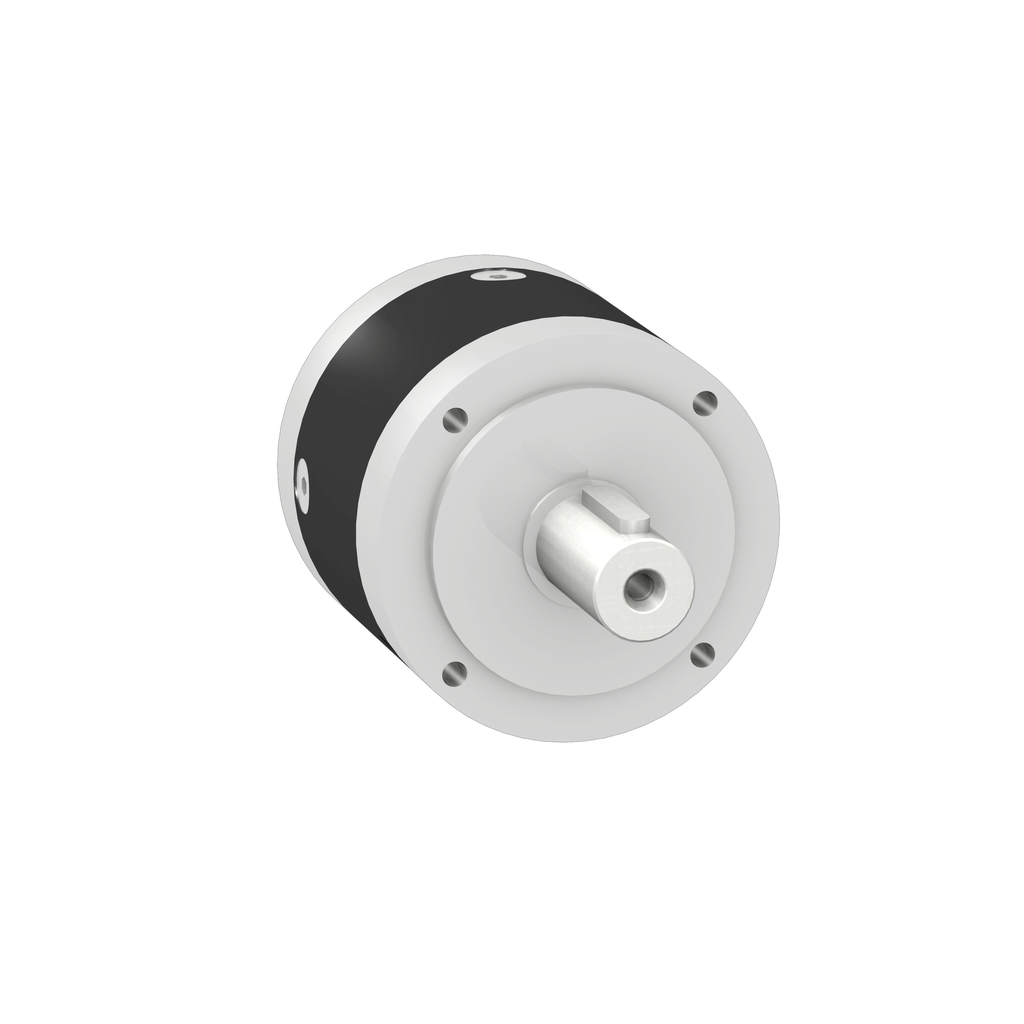

This product is part of the Lexium 32 range, an offer of planetary gearboxes. This planetary gearbox has straight teeth, lubricated for life. The external diameter of gearbox is 120mm. It is a gearbox with a reduction ratio of 40 1, maximum axial force (Fa) of 2100N at 100RPM and continuous output torque of 230Nm at 100RPM at 30°C. It offers service life of about 30,000 hours at 100RPM at 30°C. It is an IP54 rated product. The housing is made of black anodized aluminum. It weighs 8kg. This range is compatible with Lexium 62, Lexium 52, Lexium 32, Lexium 28, Lexium 32i and Lexium 62 ILM servo drives. It can be mounted in any position. Lexium 32 is a servo drive range provides drive and motor combination that has exactly the right power, performance and functionality. The Lexium 32 range of servo drives includes four servo drive models with power ratings from 0.15kW to 11kW and the servo motor ranges BMH and BSH series.
gearbox straight teeth GBX, Lexium, 120mm, reduction 40:1 , 9arc.min, 230N.m
gearbox straight teeth GBX, Lexium, 120mm, reduction 40:1 , 9arc.min, 230N.m
SKU: 487949
Category: Automation & Control
Reviews (0)
Be the first to review “gearbox straight teeth GBX, Lexium, 120mm, reduction 40:1 , 9arc.min, 230N.m” Cancel reply
