PowerPacT P-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the P-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. For an overload or a short circuit, it must be protected by an upstream device. PowerPacT P-Frame switches are available in unit mount, I-Line, plug-in, or drawout versions. This switch has lugs on the line side and terminal nuts on the load side. This PowerPacT P, 1200A, 3 pole, automatic switch has a short circuit withstand current rating of 25kA at 600VAC. PowerPacT P automatic switches comply to UL and CSA standards.

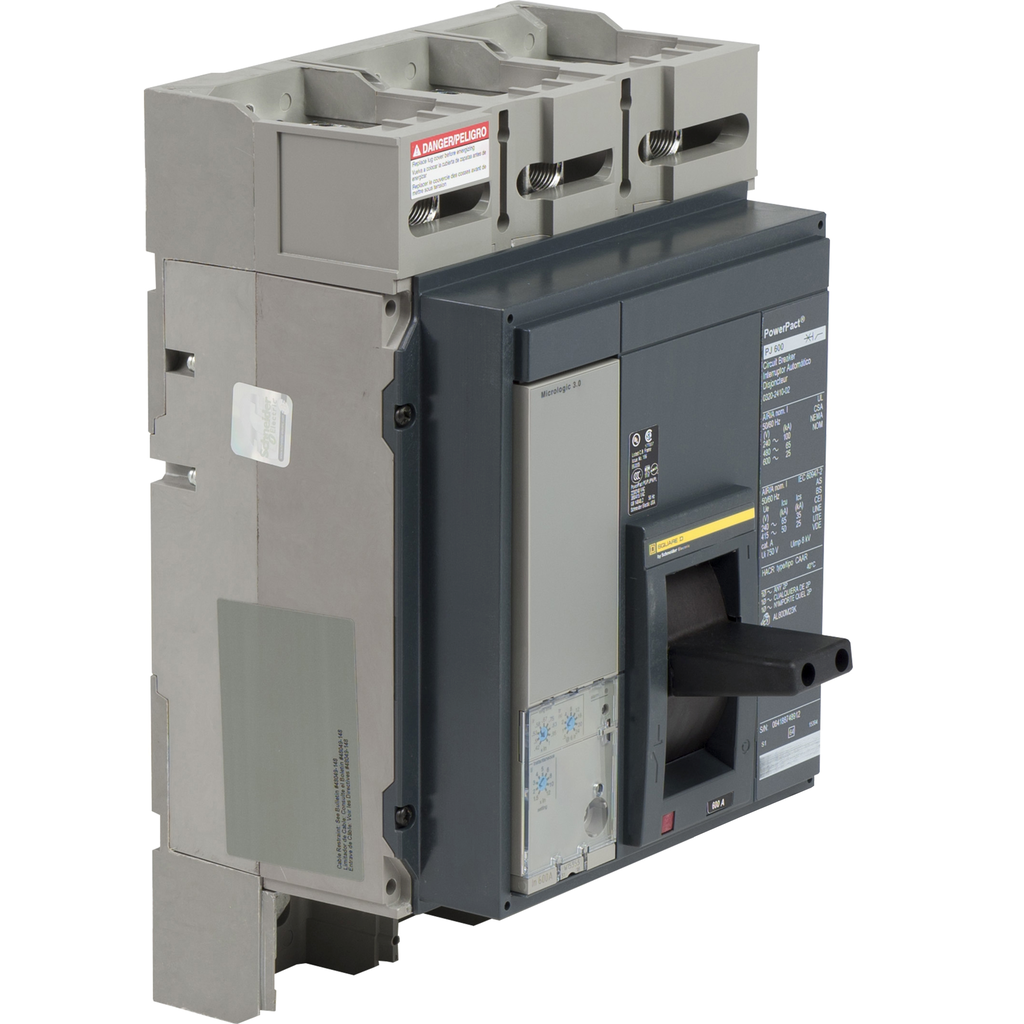

Automatic switch, PowerPacT P, 1200A, 3 pole, 600VAC, 25kA, lugs, magnetic
Automatic switch, PowerPacT P, 1200A, 3 pole, 600VAC, 25kA, lugs, magnetic
