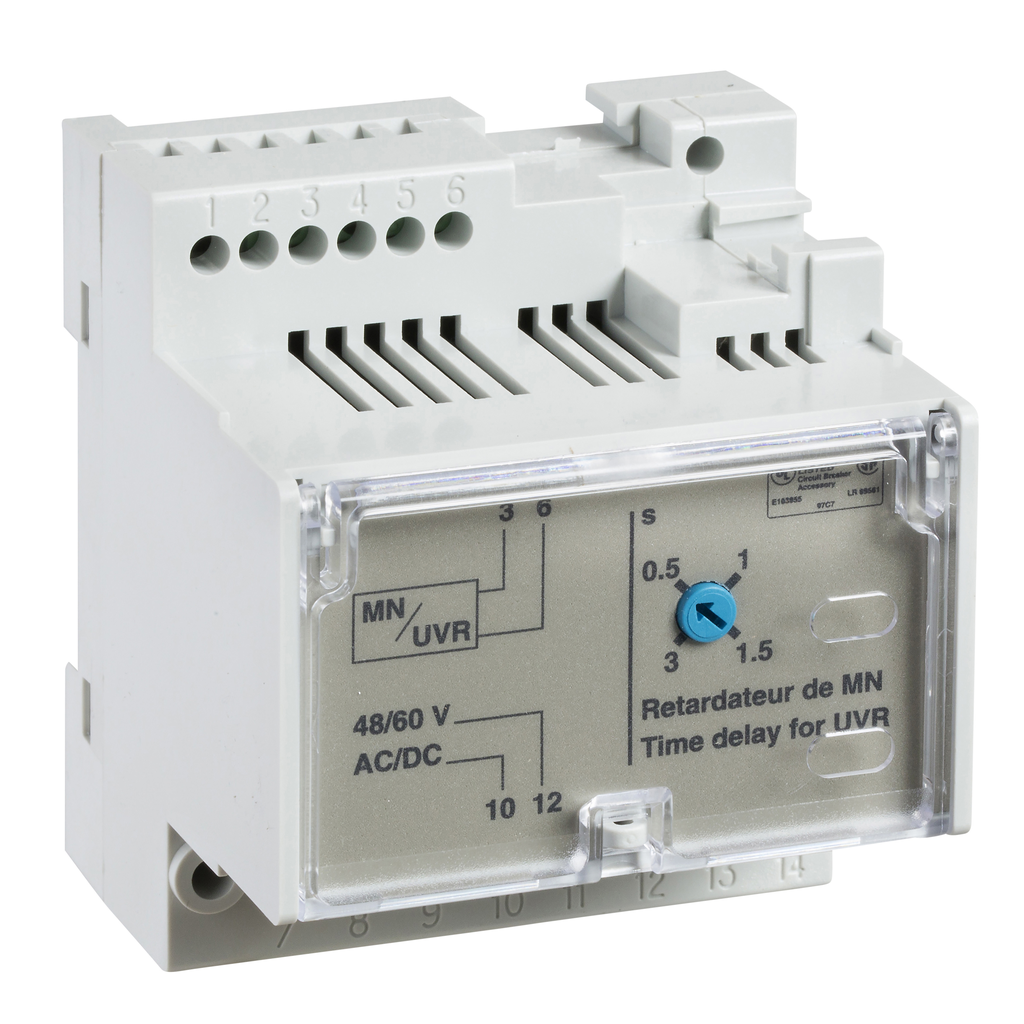

This time delay unit is an auxiliary that can be combined with an undervoltage release (MN). It must be associated with a 48VDC MN undervoltage release. It eliminates the risk of nuisance tripping due to transient voltage dips lasting from 200ms to 3s. Its power supply is 48-60VDC or 48-60VAC 50/60Hz. This time delay unit has 4 adjustable steps (0.5s – 1s – 1.5s – 3s). It is an external accessory and can be mounted in the switchboard.
MN delay unit, MasterPact NT/NW, ComPacT NS, adjustable time delay 0.5s to 3s, 48/60VDC, 48/60VAC 50/60Hz, spare part
MN delay unit, MasterPact NT/NW, ComPacT NS, adjustable time delay 0.5s to 3s, 48/60VDC, 48/60VAC 50/60Hz, spare part
