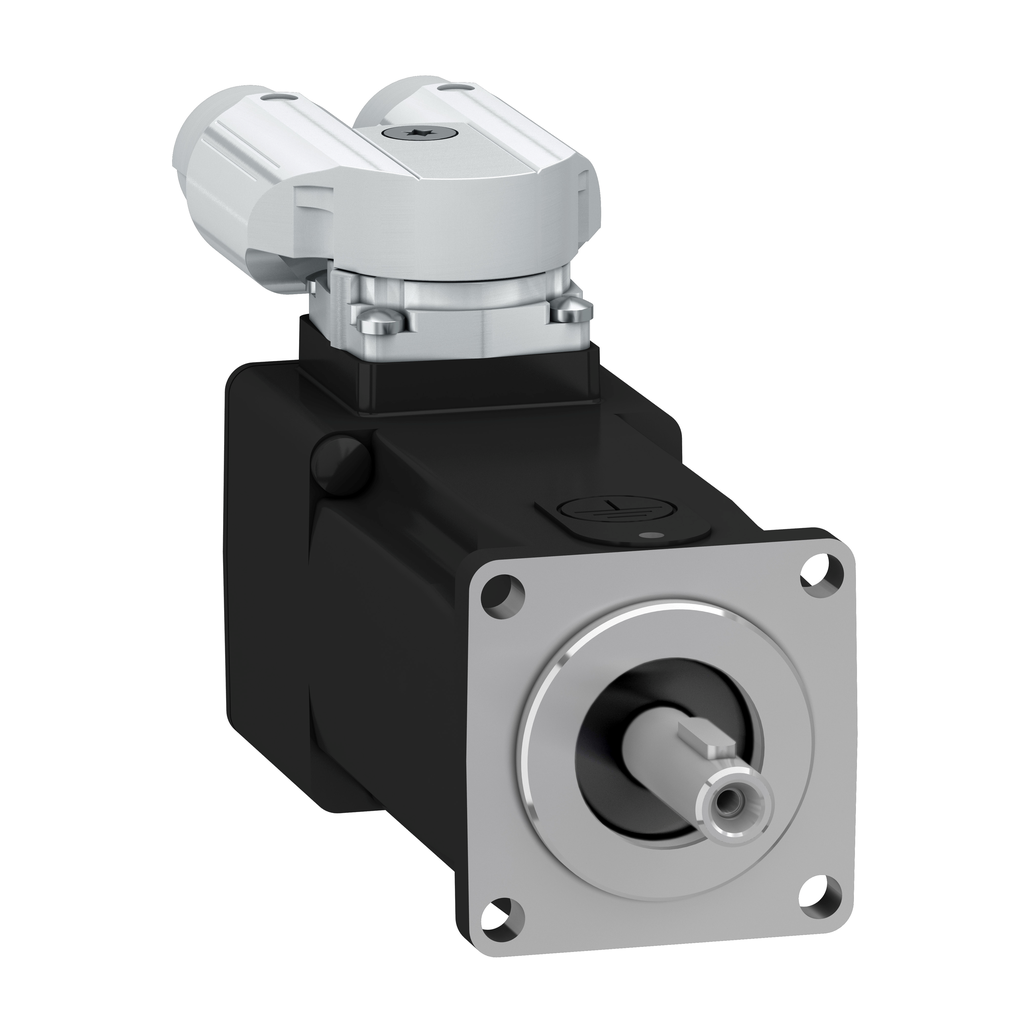

This product is part of the Lexium 32 range, an offer of servo motors from 0.15kW to 11kW. The 10-pole AC servo motor features maximum mechanical speed of 10,000RPM and keyed shaft end without holding brake. It is an equipped with a single-turn SinCos Hiperface® feedback with 32,768 points/turn speed feedback resolution. It is a servo motor with a rated supply voltage of 400V, a continuous stall current of 1.5A and a continuous power of 398W. The shaft dimensions are 8mm (diameter) x 25mm (length). It is furnished with rotatable right angled connectors for electrical connection. It is an IP50 standard rated product. The length of this product is 93.4mm and the centering collar dimensions are 2.5mm (depth) x 30mm (diameter) with 46mm mounting hole. It weighs 0.6kg. This range is compatible with Lexium 32 servo drives. It supports 40mm international standard flange mount with a natural convection cooling system. Lexium 32 is a servo drive range provides drive and motor combination that has exactly the right power, performance and functionality. The Lexium 32 range of servo drives includes four servo drive models with power ratings from 0.15kW to 11kW and the servo motor ranges BMH and BSH series.
servo motor BSH, Lexium 32, 0.38N.m, 9000rpm, 40mm, keyed shaft, 16 Sincos single turn, without brake, IP50
servo motor BSH, Lexium 32, 0.38N.m, 9000rpm, 40mm, keyed shaft, 16 Sincos single turn, without brake, IP50
SKU: 9160033
Category: Automation & Control
Reviews (0)
Be the first to review “servo motor BSH, Lexium 32, 0.38N.m, 9000rpm, 40mm, keyed shaft, 16 Sincos single turn, without brake, IP50” Cancel reply
