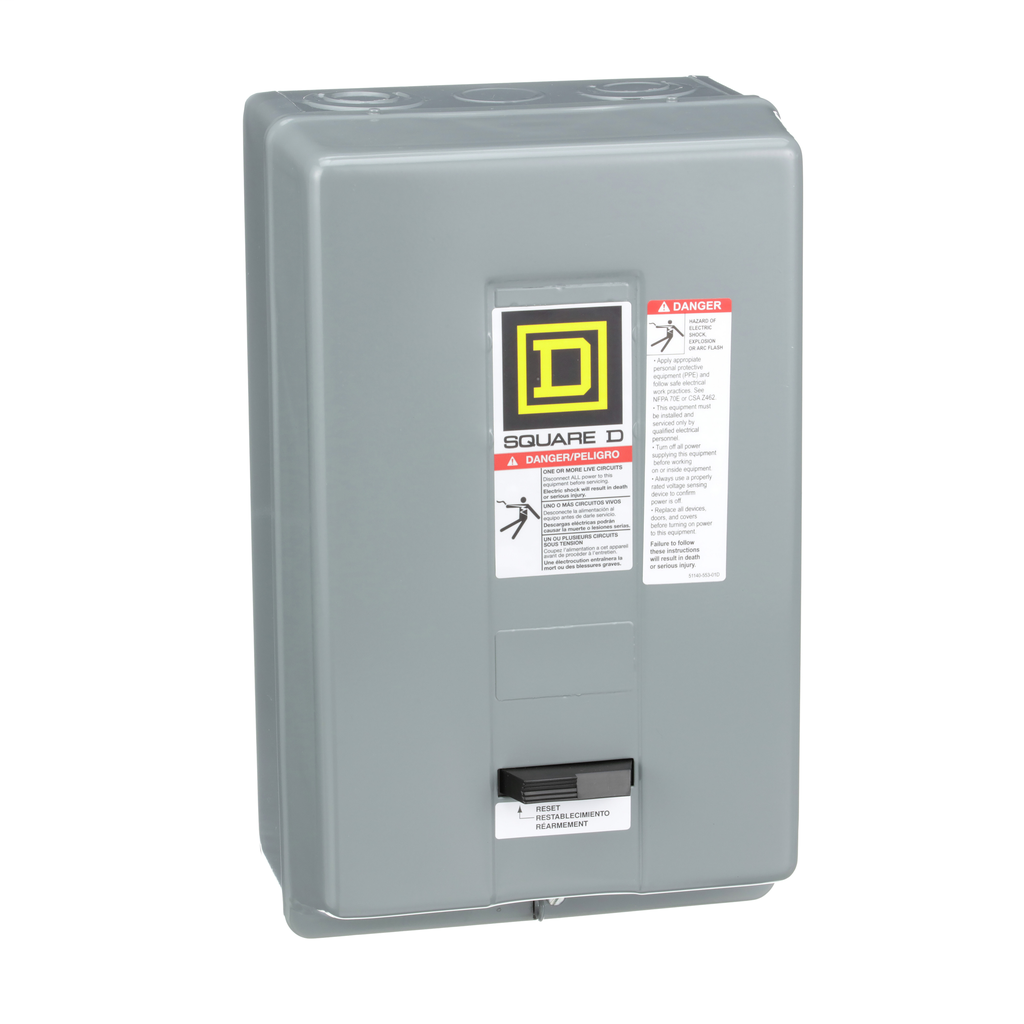

Type S nonreversing magnetic starter, NEMA Size 2, 3 P, 110/120 VAC 50/60 Hz coil, Motor Logic overload, NEMA 1

Type S non-reversing magnetic starters are for motor control applications. NEMA Size 2 starters have ratings of 10 HP at 200 VAC, 15 HP at 230 VAC and 25 HP at 460 and 575 VAC three phase and has a maximum rating of 45 Amps. This 3 pole starter is for poly phase applications. These starters are available with a wide variety of replaceable coil voltages. Starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. The Motor Logic solid state overload relay is used to sense over current conditions. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this starter. Enclosure is 12.69 inches tall, 7.81 inches wide and 6.31 inches deep. A wide variety of accessories are available for Type S starters. Type S starters are UL listed and CSA certified for global applications.
