HomePower Distribution Transformer, Type T, industrial control, 500VA, 1 phase, 277V primary, 120V secondary, 115C rise
Previous product
primary_image
Reversing contactor, TeSys K, 3P, AC-3, lt or eq to 440V 12 A, 1 NO, 24VDC coil
Back to products
Next product
Placeholder
LIKE VM1-PNO-13-TEQ SCHNEIDER

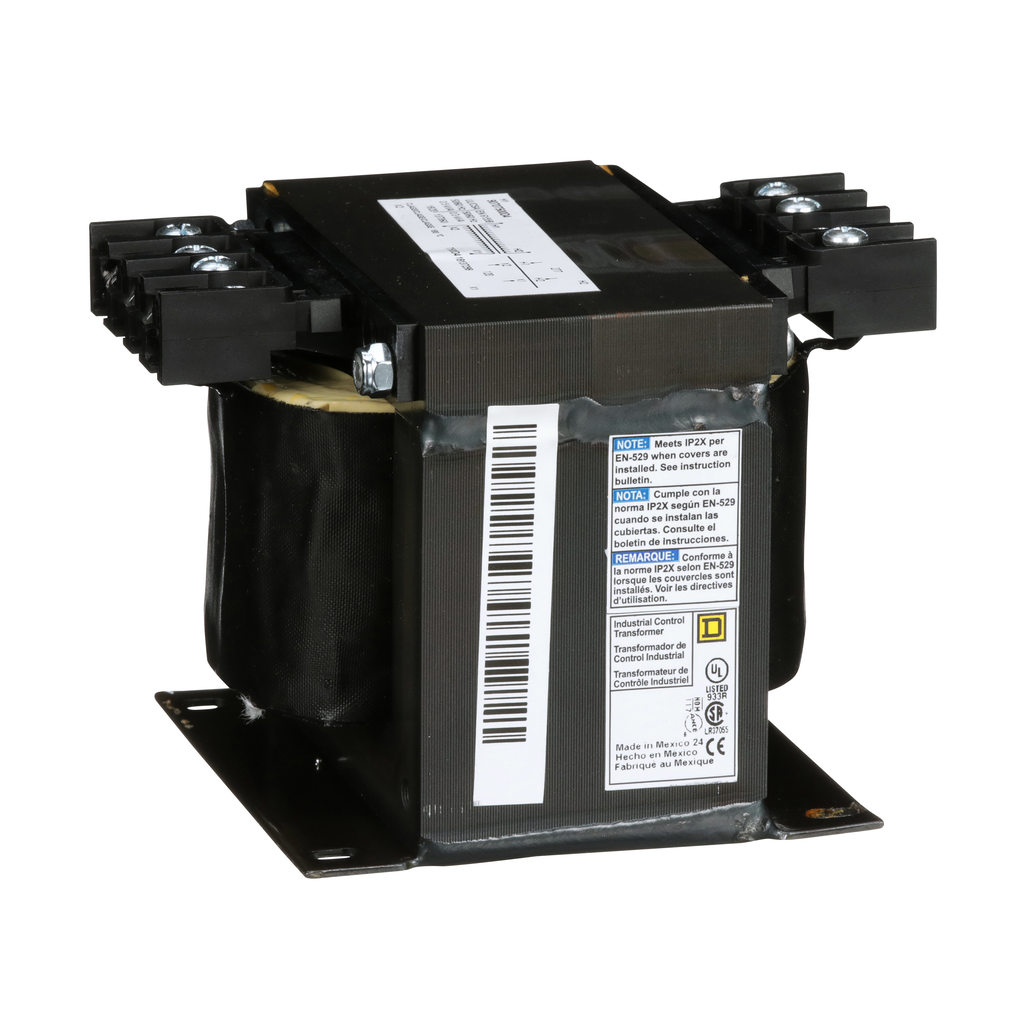

Transformer, Type T, industrial control, 500VA, 1 phase, 277V primary, 120V secondary, 115C rise

Transformer, Type T, industrial control, 500VA, 1 phase, 277V primary, 120V secondary, 115C rise

SKU: 15698320 Category: Power Distribution
Share
Facebook Twitter Pinterest linkedin Telegram
  • Description
  • Reviews (0)
Description

Type T is our most popular and complete line of control transformers. They come with unmatched design innovations for top performance and is manufactured using the most advanced insulating materials. The Type T control transformer is the best choice if size and cost are of concern. Schneider Electric offers transformers with internally pre-wired 24-inch primary and secondary leads, instead of terminal boards, to make installation easier and faster for many applications. These are only available for single voltage primary and single voltage secondary applications. Schneider Electric offers Type T and Type EO transformers in the MultiTap version. This Industrial Control Transformer has a power rating of 500VA and is 1 phase. This transformer has a 277V primary voltage and 120V secondary voltage. This transformer complies to UL, CE & CSA standards. Dimensions for this product are 3.84 in (H), 4.5 in (W), 5.49 in (D). This transformer has screw clamp terminals connections. The material used for this product is copper used in the winding. This product has a compatability for FSC2. This product comes with an 18 month warranty.
