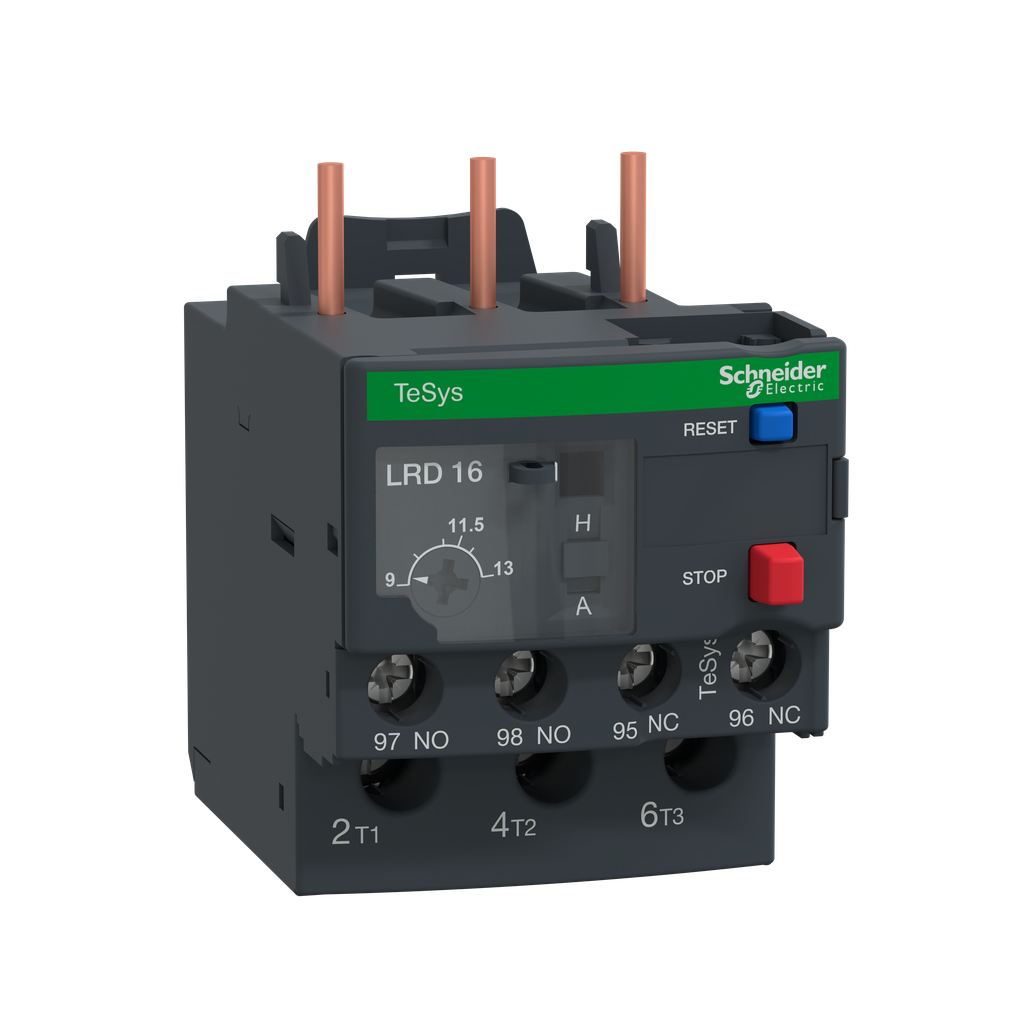

TeSys LRD thermal overload relay, 13A/690V, thermal setting range 9-13A, tripping class 10A, for protection of 3-phase motors 5.5kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D12-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B106 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).
Thermal overload relay, TeSys Deca, 9…13 A, class 10A, TQ 10
Thermal overload relay, TeSys Deca, 9…13 A, class 10A, TQ 10
SKU: 9037955
Category: Automation & Control
Reviews (0)
Be the first to review “Thermal overload relay, TeSys Deca, 9…13 A, class 10A, TQ 10” Cancel reply
