TeSys U auxiliary signaling contacts module to be inserted in standard power bases LUB12, LUB32, LUB38 or advanced power base LUB120, LUB320, LUB380. It indicates the ON/OFF running status of the motor, whatever the direction of rotation. It provides 2NO instantaneous auxiliary contacts rated 24-250V AC/DC 5A max. It is powered by the control unit. To be inserted in the cavity of a power base provided for the auxiliary modules. Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

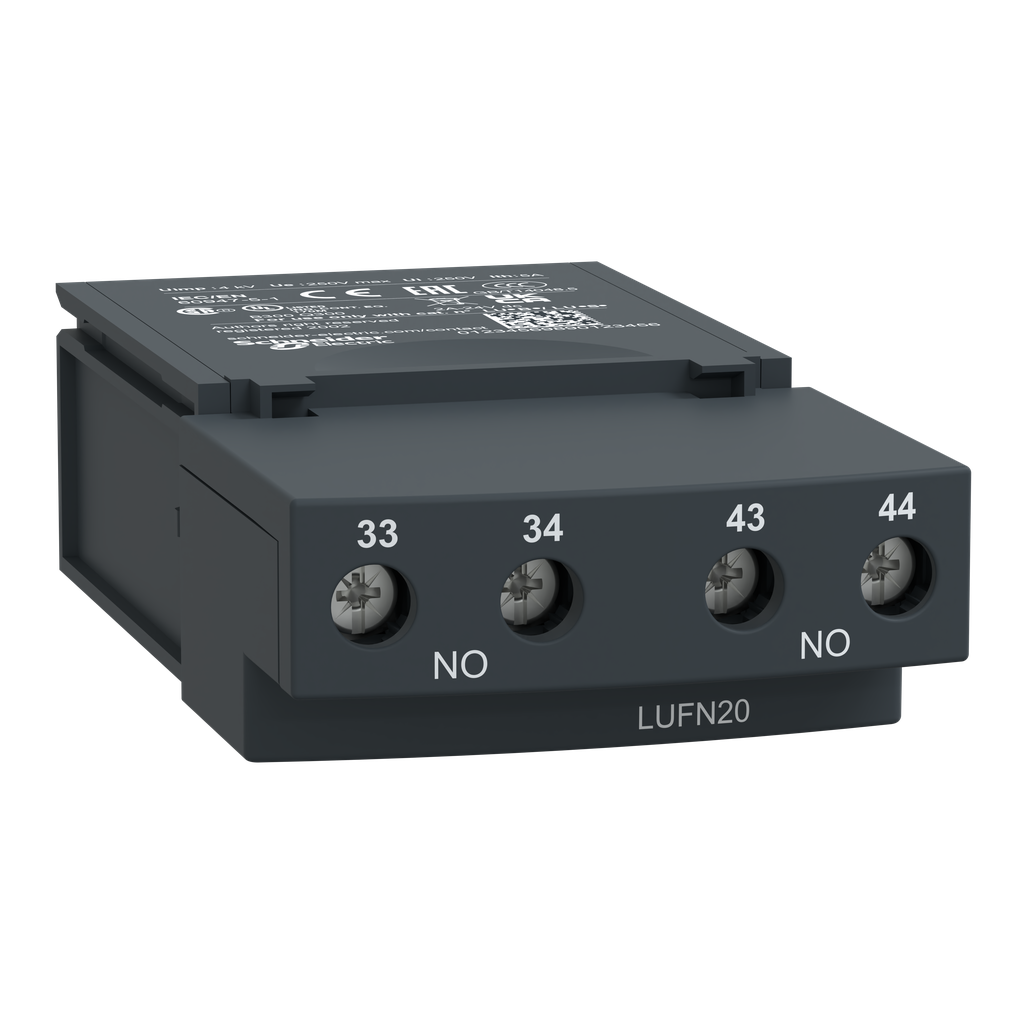

Auxiliary contact module, TeSys Ultra, 2 NO
Auxiliary contact module, TeSys Ultra, 2 NO
