TeSys NEMA contactors and starters conform to NEMA ICS2 standards. The NEMA size is printed directly on the face of the contactor. The 3 pole NEMA size 2 starter has a 45 continuous current rating. It also has ratings of 10 HP at 200, 15 HP at 230 Vac and 25 HP at 460 and 575 VAC. A Motor Logic overload relay is used on this starter. To maximize convenience and to reduce inventory the TeSys N starter uses the common TeSys accessories. The starter has a 120 VAC replaceable coil. Starter is UL listed and CSA Certified.

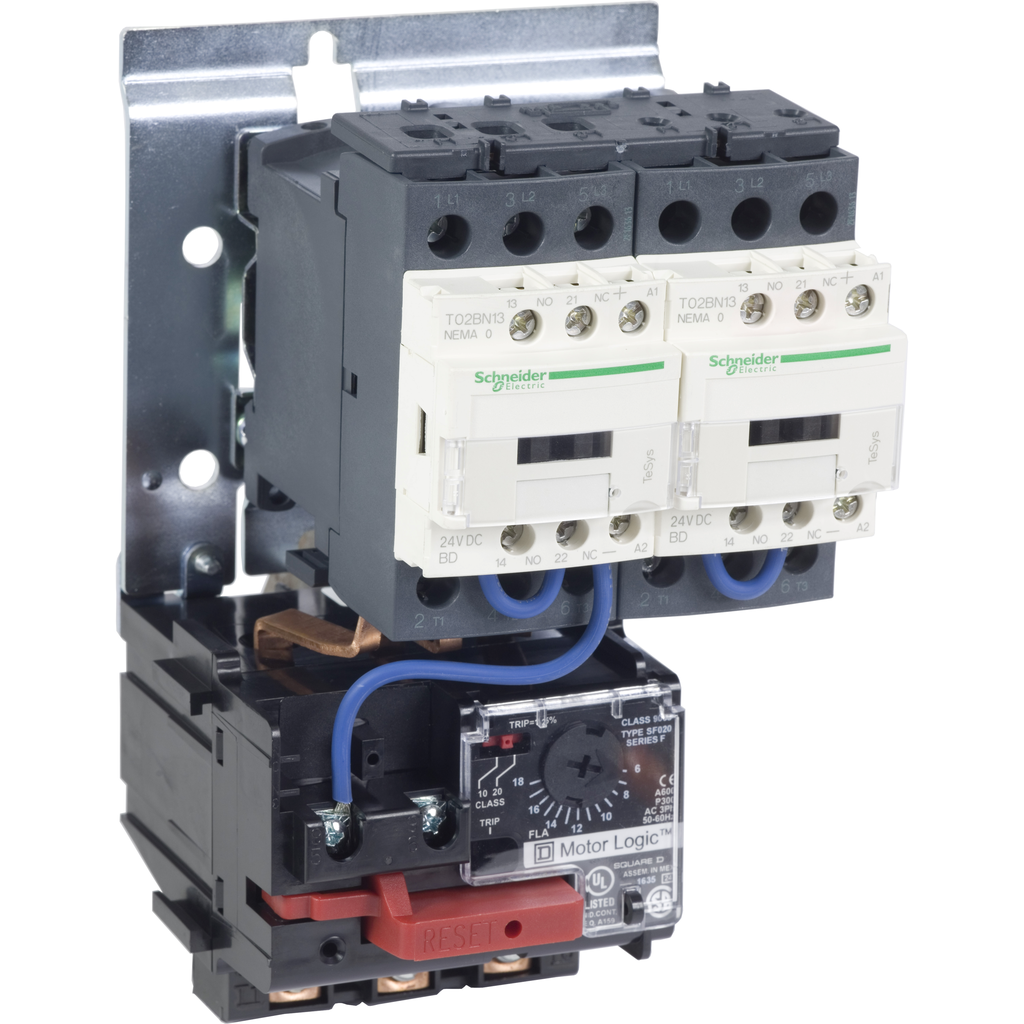

TeSys NEMA Sz 0 rev open starter, 3P, 120 VAC
TeSys NEMA Sz 0 rev open starter, 3P, 120 VAC
SKU: 500464
Category: Automation & Control
