TeSys GV manual self protected combination starters meet the requirements of UL 508 Type F, see UL File E164871. Manual motor starter consists of a GV2P10 motor starter protector and a LC1D09G7 IEC contactor assembled together into one device. The GV2P10 high performance manual starter with a rotary handle offers a high withstand rating and visible trip indication. The GV2P10 provides trip on overload, short circuit, undervoltage, or shunt trip. It has a 4.0 to 6.3 A thermal setting. The LC1D09B7 IEC contactor is rated 9 amperes and has a 24 VAC 50/60 Hz coil.

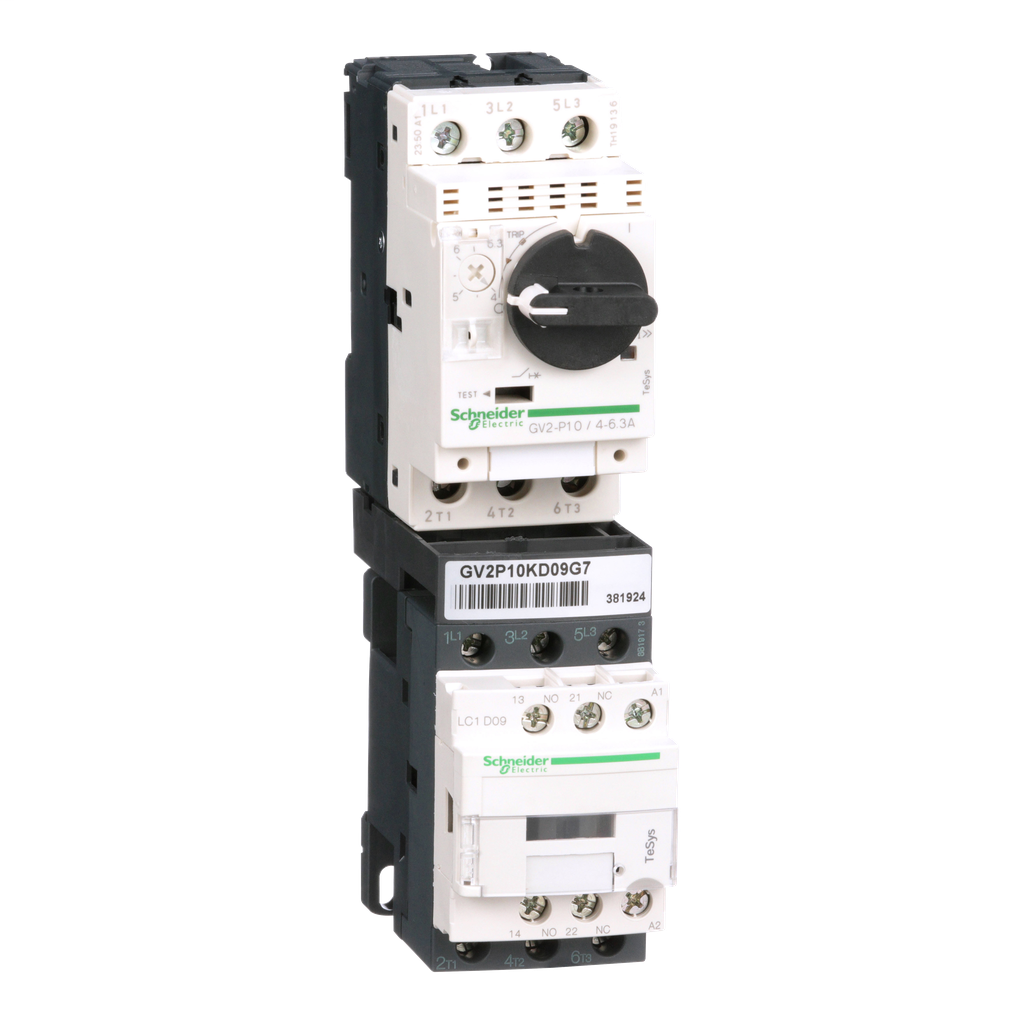

TESYS motor starter kit, LC1D09G7 contactor, GV2P10 motor starter protector
TESYS motor starter kit, LC1D09G7 contactor, GV2P10 motor starter protector
