HomeOverload Relays - Thermal Type TeSys Deca thermal overload relays – 2.5…4 A – class 20
Previous product
primary_image
Circuit breaker, PowerPacT L, 400A, 3 pole, 600VAC, 18kA, I-Line, Micrologic 5.3E, 80%, ABC
Back to products
Next product
Placeholder
TeSys F contactor - 4P (4 NO) - AC-1 - <= 440 V 400 A - coil 110 V AC

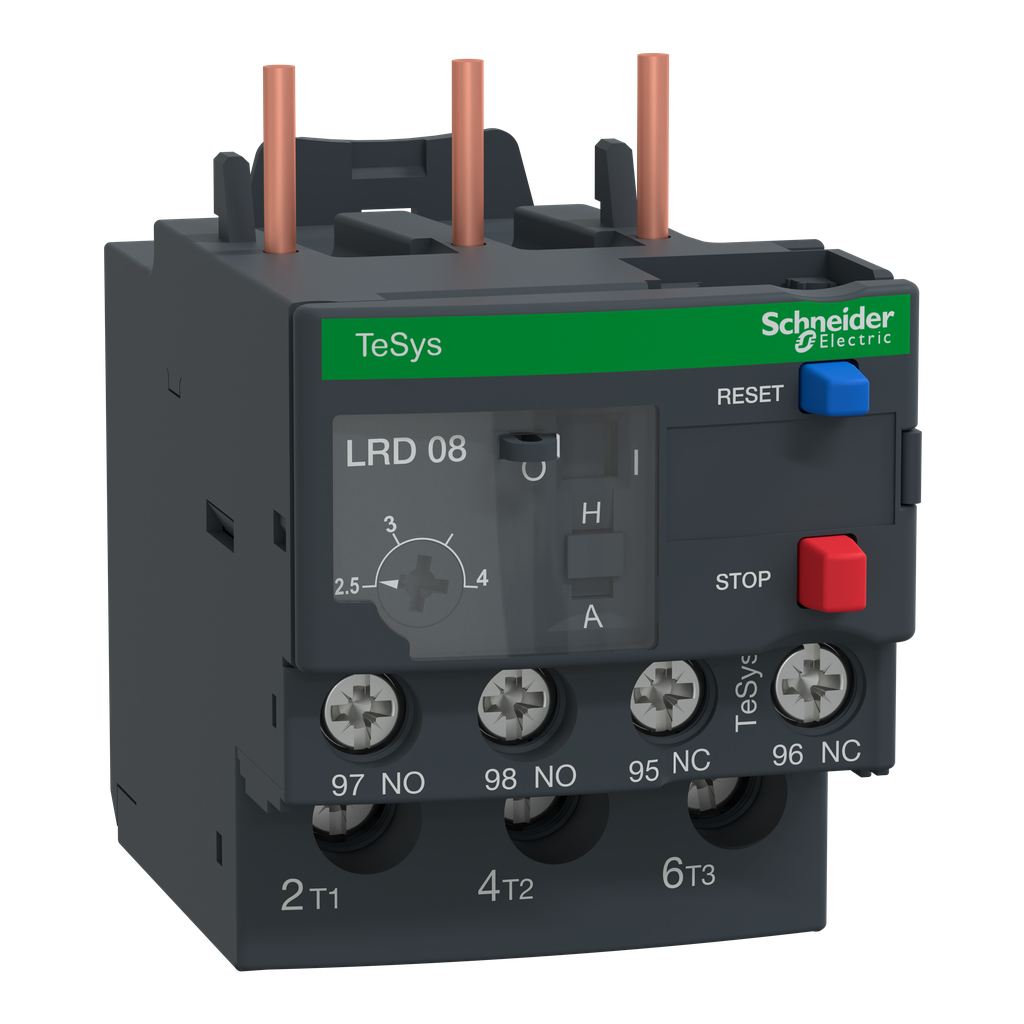

TeSys Deca thermal overload relays – 2.5…4 A – class 20

TeSys Deca thermal overload relays – 2.5…4 A – class 20

SKU: 502506 Category: Overload Relays - Thermal Type
Share
Facebook Twitter Pinterest linkedin Telegram
  • Description
  • Reviews (0)
Description

TeSys LRD thermal overload relay, 4A/690V, thermal setting range 2.5-4A, tripping class 20, for protection of 3-phase motors 1.1-1.5kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D09-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B205 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).
