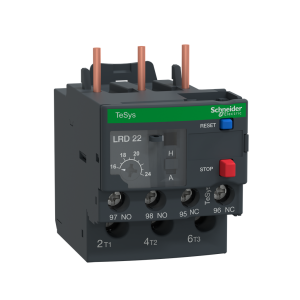

TeSys LRD overload relays are designed to be used with TeSys D contactors to make a motor starter. This overload relay can be used with 80 amp through 95 amp TeSys D contactors. These differential thermal overload relays detect over currents in the lines to the motor. When an overcurrent is detected the overload relay working with the contactor will disconnect the power to the motor. This will minimize the damage to the motor windings. This overload relay has an adjustable trip current rating of 30 to 40 amperes. This trip current rating is calibrated per Class 10A. Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).
TeSys Deca, thermal overload relay, 30 to 40 A, class 10A, for LC1D80 and LC1D95
TeSys Deca, thermal overload relay, 30 to 40 A, class 10A, for LC1D80 and LC1D95
SKU: 513657
Category: Automation & Control
Reviews (0)
Be the first to review “TeSys Deca, thermal overload relay, 30 to 40 A, class 10A, for LC1D80 and LC1D95” Cancel reply
Related products

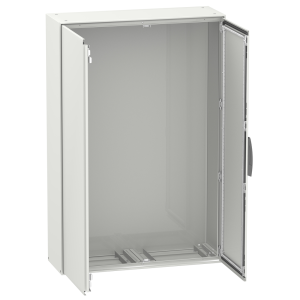

SFX 304L stainless suitable enclosure, H1800xW800xD400mm, Scotch BriteĀ® finish.
