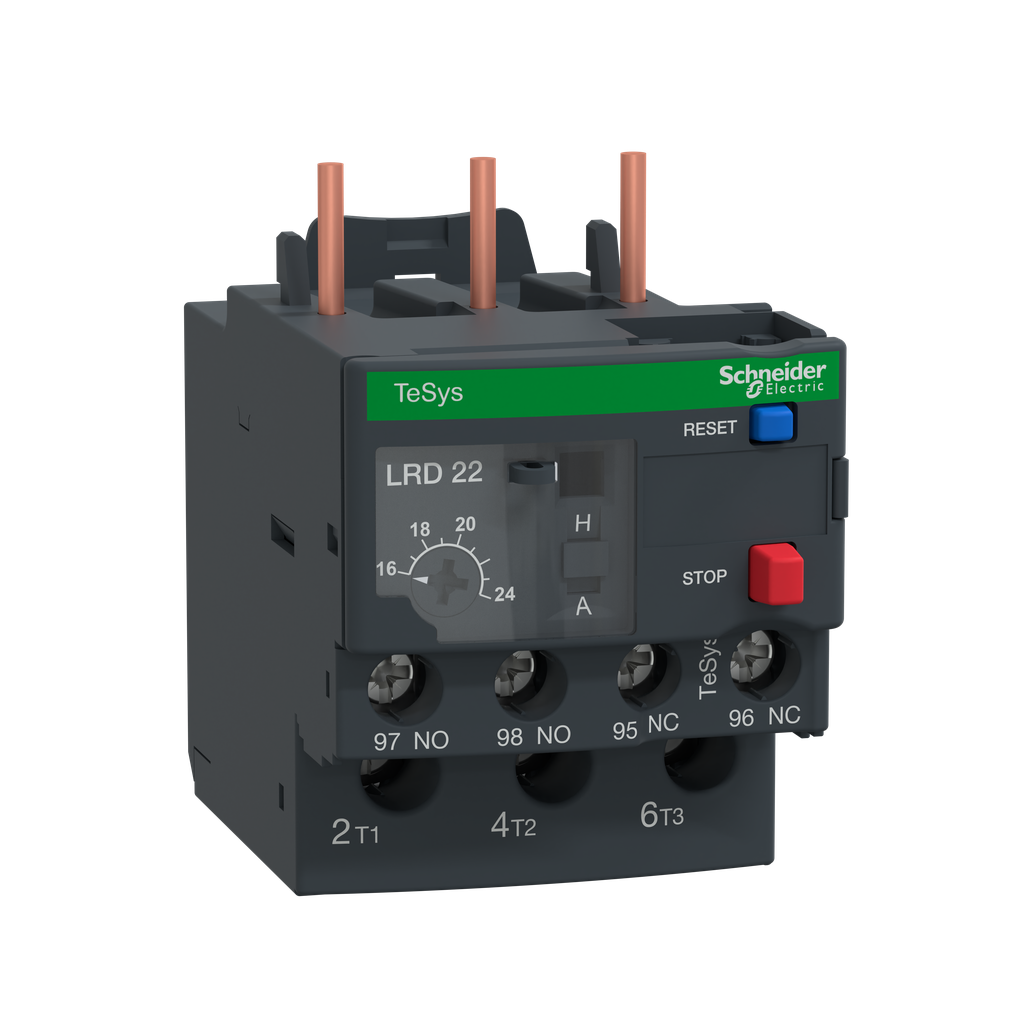

TeSys LRD overload relays are designed to be used with TeSys D contactors to make a motor starter. This overload relay can be used with 9 amp through 38 amp TeSys D contactors. These differential thermal overload relays detect over currents in the lines to the motor. When an overcurrent is detected the overload relay working with the contactor will disconnect the power to the motor. This will minimize the damage to the motor windings. This overload relay has an adjustable trip current rating of 16 to 24 amperes. This trip current rating is calibrated per Class 10A. Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).
TeSys Deca, thermal overload relay, 16 to 24 A, class 10A
TeSys Deca, thermal overload relay, 16 to 24 A, class 10A
SKU: 516306
Category: Automation & Control
Reviews (0)
Be the first to review “TeSys Deca, thermal overload relay, 16 to 24 A, class 10A” Cancel reply
