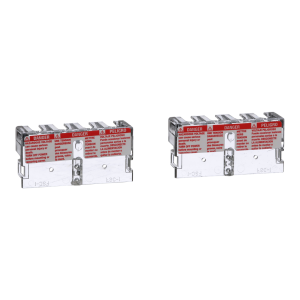

FINGER SAFE COVERS (10 kits/pkg)
Back to products
Next product
primary_image
Jumper cable XZ, male straight M12 3 pin, female elbowed Ø 8 mm 3 pin, PUR 2 m

TeSys K control relay – 3 NO + 1 NC – <= 690 V – 24 V DC standard coil

TeSys K control relay – 3 NO + 1 NC – <= 690 V – 24 V DC standard coil

SKU: 509232 Category: Automation & Control
Share
Facebook Twitter Pinterest linkedin Telegram
  • Description
  • Reviews (0)
Description

TeSys K control relay, 4 contacts (3NO + 1NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 24V DC control circuit with no inrush consumption, connection by solder pins for printed circuit boards. For high operating rates until 180 cycles/min and ambient temperature -25/+50°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium product (RoHS/REACh).
