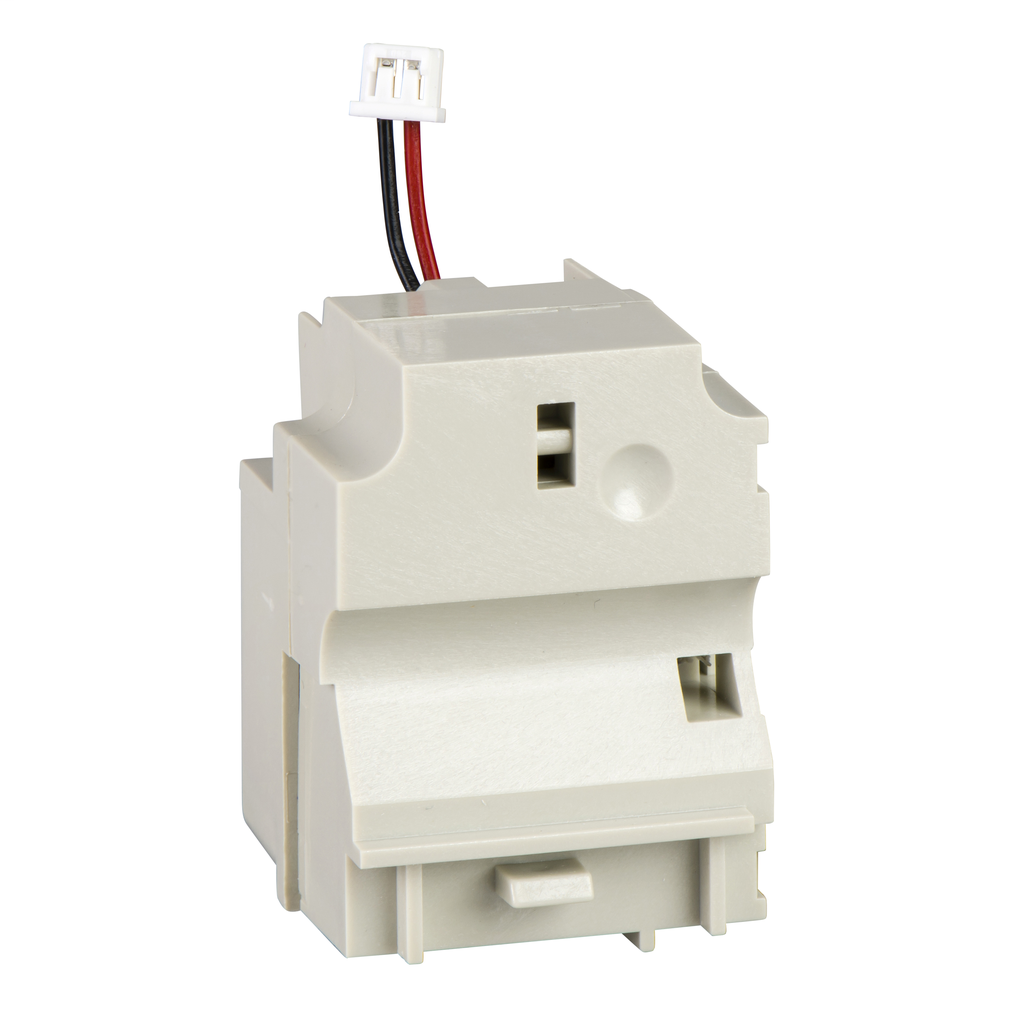

TeSys GV fault discrimination device, for motor circuit breakers GV7. It makes possible to differentiate between a thermal fault and a magnetic fault. Electronic module to be supplied in 24-48V AC 50/60Hz or 24-72V DC. To be plugged inside the circuit breaker, it takes the same cavity as the one used for the trip unit, connection by screw terminals. Green Premium compliant (RoHS/REACh).
TeSys GV7 – fault discrimination device – 24-48 V AC/DC
TeSys GV7 – fault discrimination device – 24-48 V AC/DC
