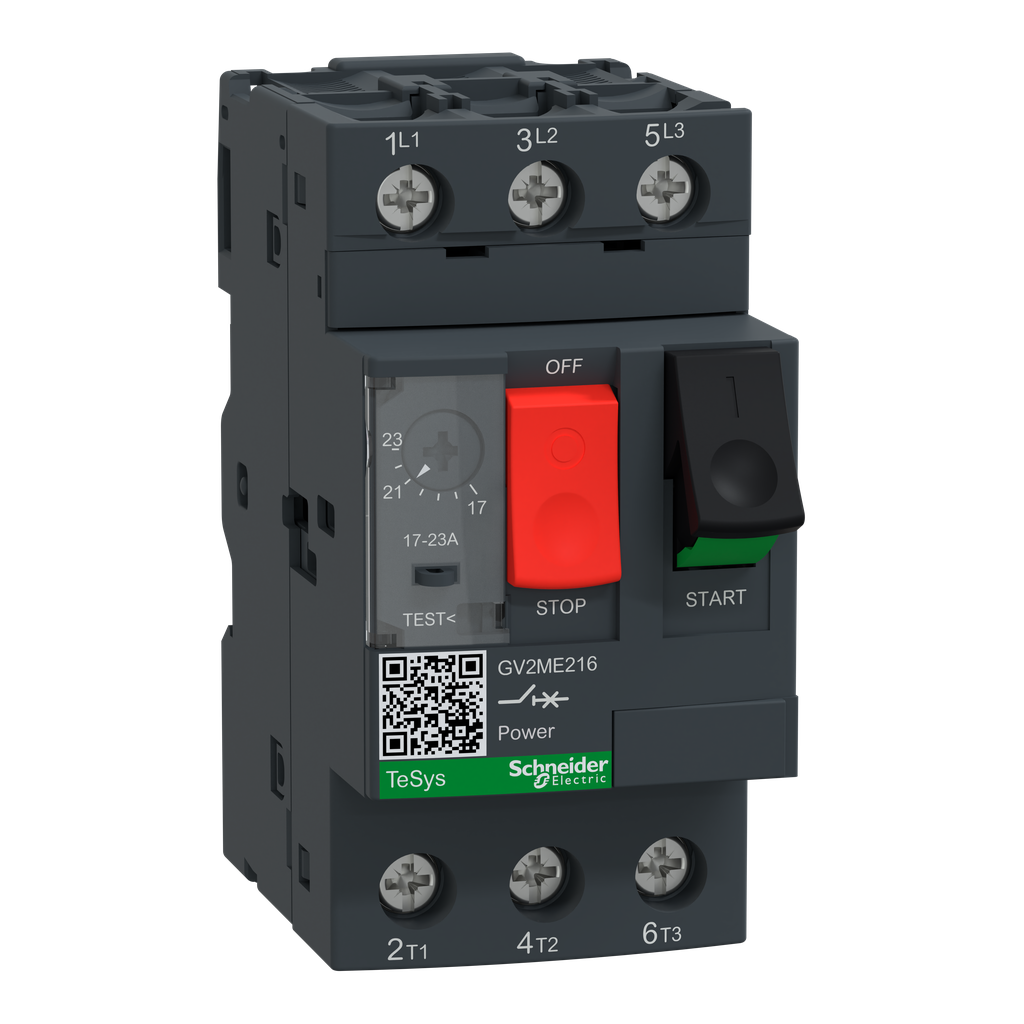

TeSys GV motor circuit breaker, 3 poles (3P), 23A/690V, for 3-phase motor applications 9kW@400V. It provides a thermal-magnetic protection with a thermal setting range 17-23A, magnetic tripping at 13xIn, high breaking capacity Icu 15kA@400V. Connection by lugs. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).
TeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, push buttons, 17…23 A, ring lug terminals
TeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, push buttons, 17…23 A, ring lug terminals
