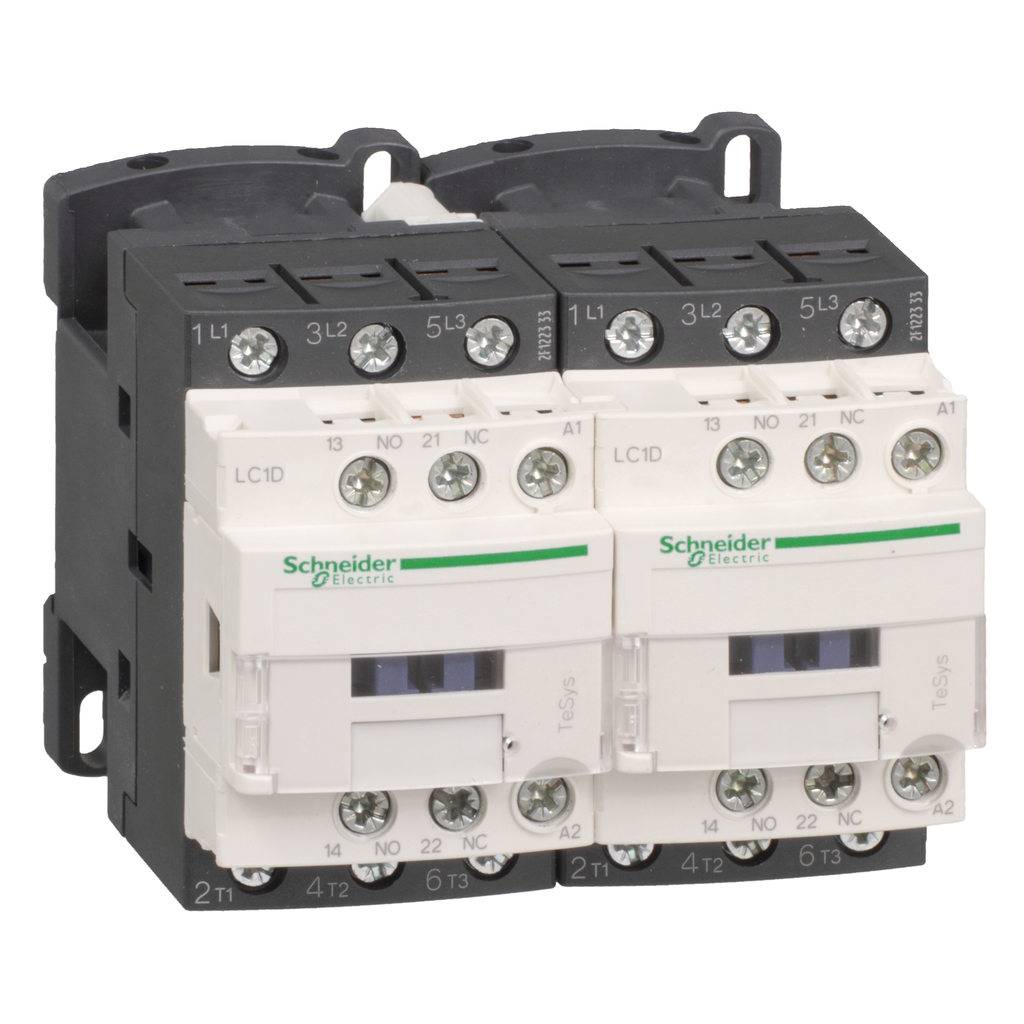

LC2D126F7 is a 3-pole TeSys D reversing contactor from Schneider Electric for motor applications 12A AC-3 5.5kW@400V. It provides a 110V 50/60Hz AC coil, 2NO+2NC auxiliary contacts, a mechanical interlock and ring-lugs terminals. LC2D126F7 is a 3-pole TeSys D reversing contactor from Schneider Electric for motor applications up to 5.5kW@400V. It provides a 110V 50/60Hz AC coil, 2NO+2NC built-in auxiliary contacts with NC certified mirror, mechanical interlock and ring-lugs terminals. Compact, DIN-rail mounting, it procures reliability and durability. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Compact product, 90mm wide, for DIN-rail and panel mounting. Assembled with mechanical interlock and pre-wired reversing circuit. Clear separation between power and control circuits, easy front access to coil and auxiliary contacts connections. Equipped with a 110V AC coil that can be supplied at 50Hz or 60Hz. Provides 4 built-in auxiliary contacts 2NO + 2NC, NC contacts are mirror certified suitable to be included in the control of safety systems. High electrical durability, guaranteed for 2 million cycles at 12A AC-3 440V, for demanding motor switching applications. Robust design with high making and breaking capacities up to 20 In. All terminals are for cables equipped with ring lugs, providing high reliability in vibrating conditions.
TeSys D reversing contactor – 3P(3 NO) – AC-3 – <= 440 V 12 A – 110 V AC coil
TeSys D reversing contactor – 3P(3 NO) – AC-3 – <= 440 V 12 A – 110 V AC coil
SKU: 534630
Category: Automation & Control
Reviews (0)
Be the first to review “TeSys D reversing contactor – 3P(3 NO) – AC-3 – <= 440 V 12 A – 110 V AC coil” Cancel reply
