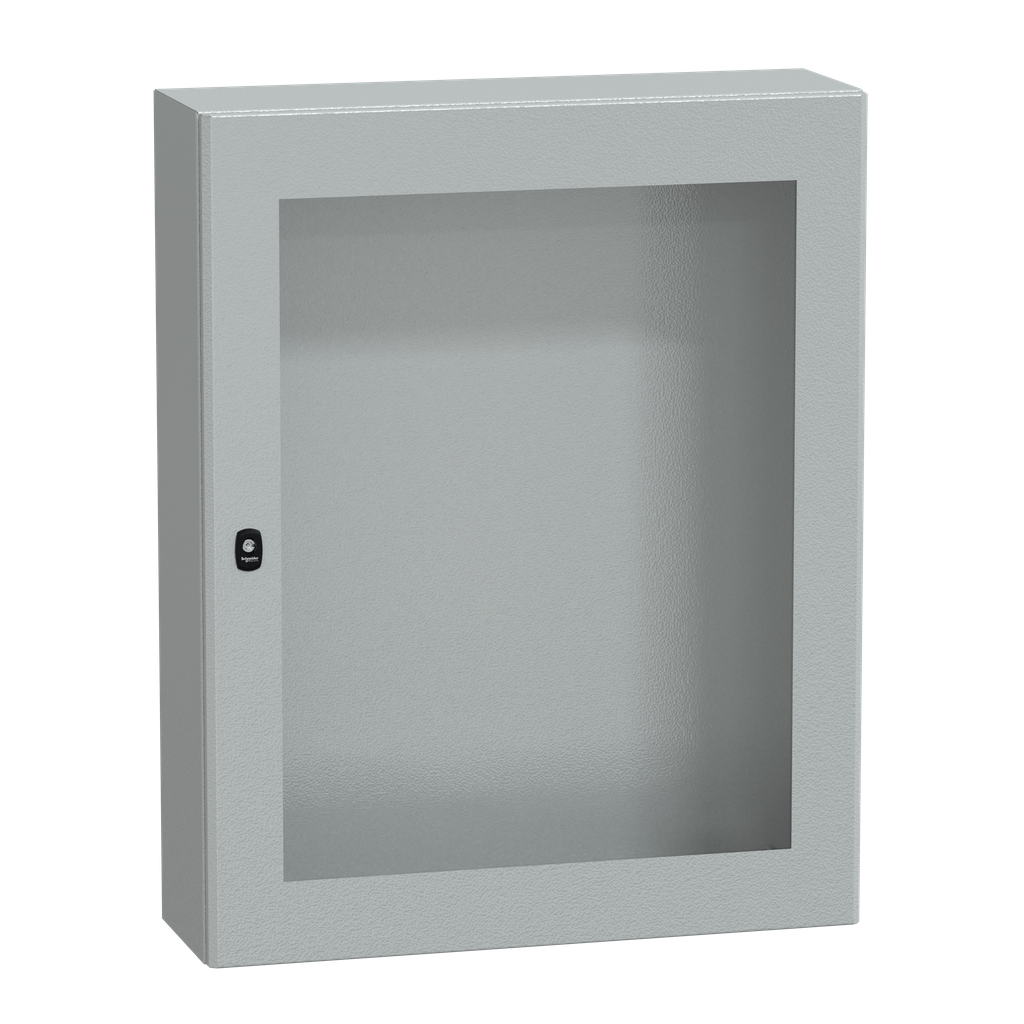

Spacial S3D wall mounted steel enclosure with glazed door. 1000 x 800 x 250 mm. Single piece body, without mounting plate. Robust construction based on a new design. 3-point closure system with handle and 3 mm double bar lock insert. Steel made, epoxy-polyester powder finish. Gutter shaped front rail double sheet thickness. Protection IP 66, IK08, Grey RAL 7035. 2 cable gland plates included, standard. Extensive range of accessories. Packaging is reusable after assembly.
Wall mounted steel enclosure, Spacial S3D, transparent door, without mounting plate, 1000x800x250mm, IP66, IK08
Wall mounted steel enclosure, Spacial S3D, transparent door, without mounting plate, 1000x800x250mm, IP66, IK08
