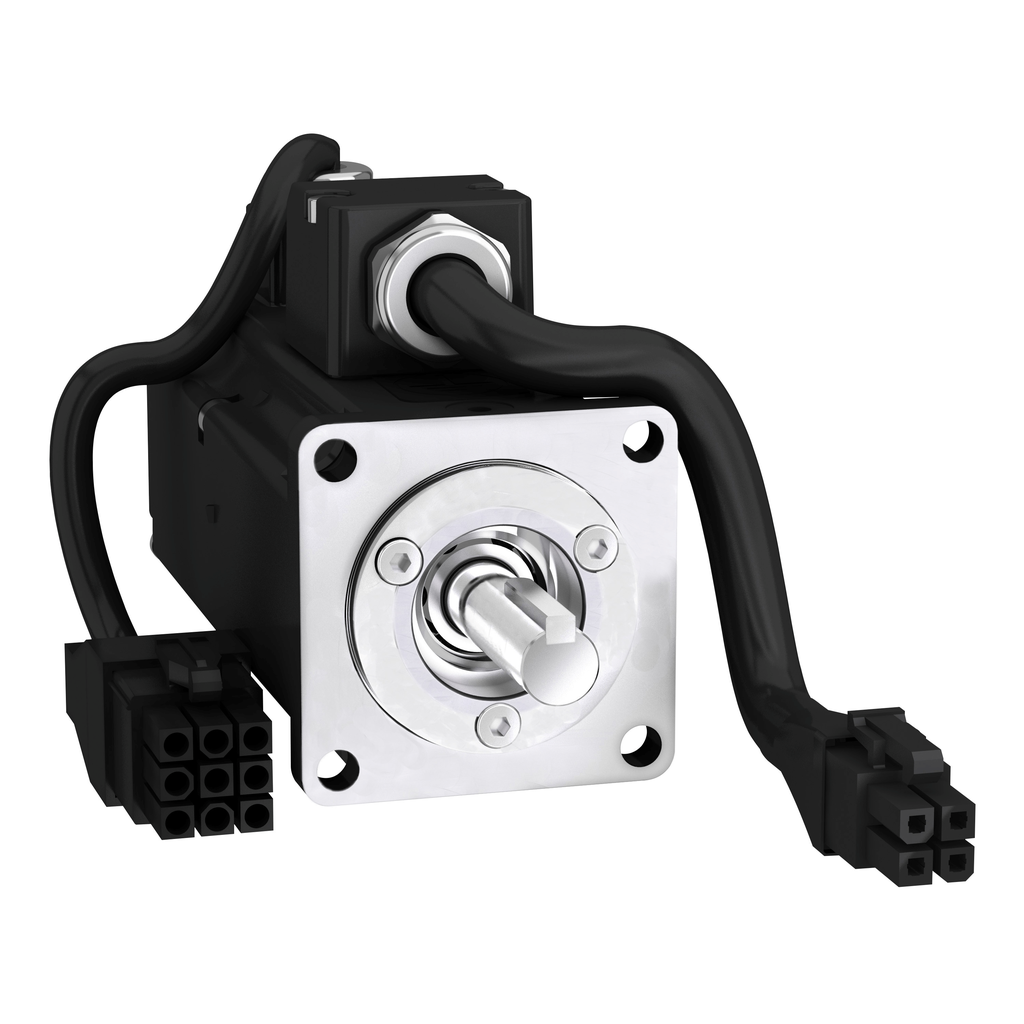

This product is part of the Lexium 28 range, an offer of motion servo drives for machines from 0.05 to 4.5kW. The brushless servo motor features a high moment of inertia with maximum mechanical speed of 5000RPM and IP65 parallel keyed shaft without holding brake. It is equipped with a 20bit single-turn absolute encoder, optimized in terms of speed of rotation (3000RPM). It is a second generation servo motors suitable for a wide variety of applications due to the different levels of motor inertia offered. It has a rated supply voltage of 220V, a continuous stall current of 0.81A and a continuous power of 100W. The shaft dimensions are 8mm (Diameter) x 25mm (Length). It is furnished with free lead for electrical connection. It is an IP50 (IM V3) and IP65 (IM B5, IM V1) rated product. Its dimensions are 100mm (Length) x 40mm (Width), centring collar dimensions are 3mm (Depth) x 30mm (Diameter) with 46mm circle diameter of the mounting hole. It weighs 0.56kg. This product is compatible with Lexium 28 and Lexium 26D servo drives. It supports Asian standard 40mm flange mount with a natural convection cooling system. Lexium 28 and Lexium BCH2, the optimized servo bundle for all motion control solutions are cost effective, energy efficient and embedded safety. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.
servo motor BCH, Lexium 28, 40mm, 100W, 0.075kg.cm², with oil seal, with key, leads connection
servo motor BCH, Lexium 28, 40mm, 100W, 0.075kg.cm², with oil seal, with key, leads connection
SKU: 480217
Category: Motion Control
Reviews (0)
Be the first to review “servo motor BCH, Lexium 28, 40mm, 100W, 0.075kg.cm², with oil seal, with key, leads connection” Cancel reply
