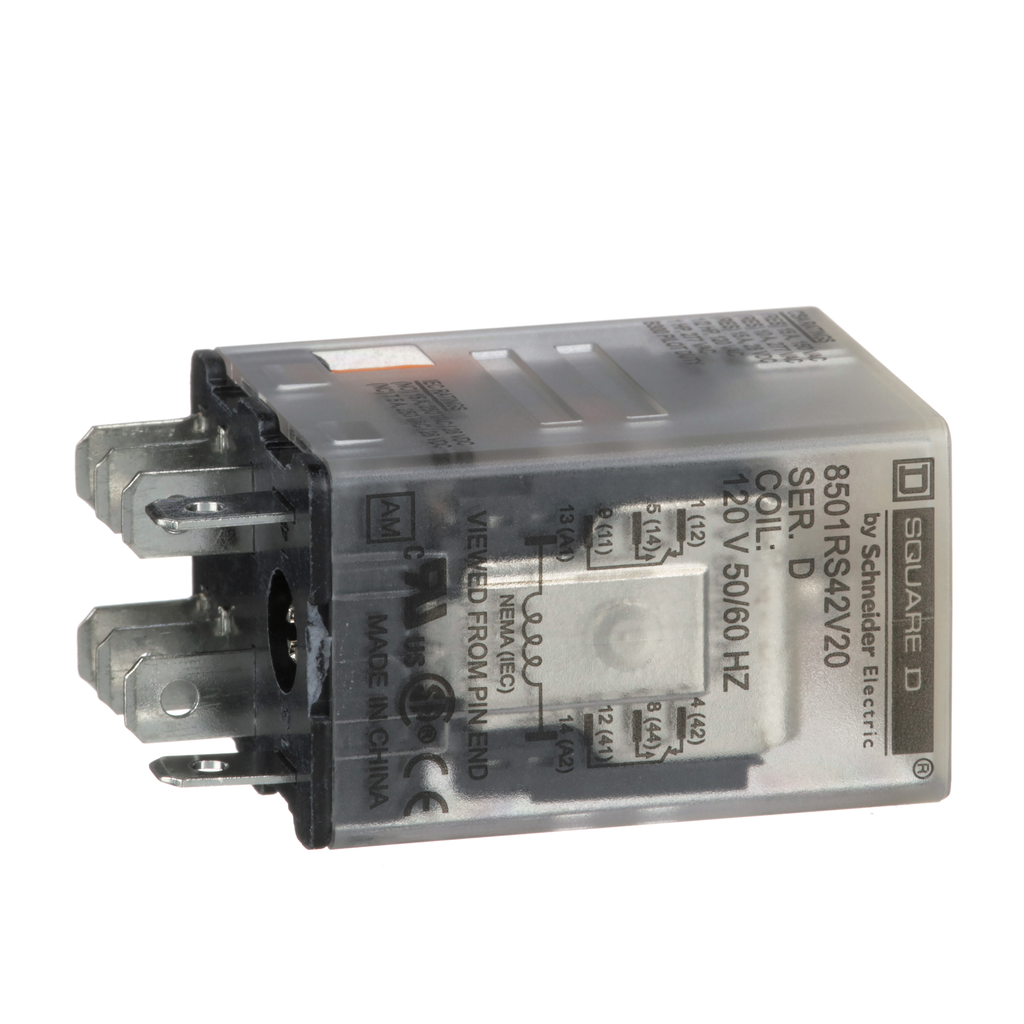

8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR42 or 8501NR42B relay socket. Relay is available with DPDT contact arrangements. It has two normally open and two normally closed contacts. The contacts have a 15 ampere resistive rating at 277 VAC, at 120 VAC and at 28 VDC, a 1/2 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 120 VAC nonreplaceable coil. Relay does not have a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
Miniature Relay, Harmony 8501R, DPDT, 8 blades, coil, 15A resistive at 120V AC, 1HP at 277V AC, 120V AC, 2NO+ 2NC
Miniature Relay, Harmony 8501R, DPDT, 8 blades, coil, 15A resistive at 120V AC, 1HP at 277V AC, 120V AC, 2NO+ 2NC
SKU: 15339174
Category: Automation & Control
Reviews (0)
Be the first to review “Miniature Relay, Harmony 8501R, DPDT, 8 blades, coil, 15A resistive at 120V AC, 1HP at 277V AC, 120V AC, 2NO+ 2NC” Cancel reply
