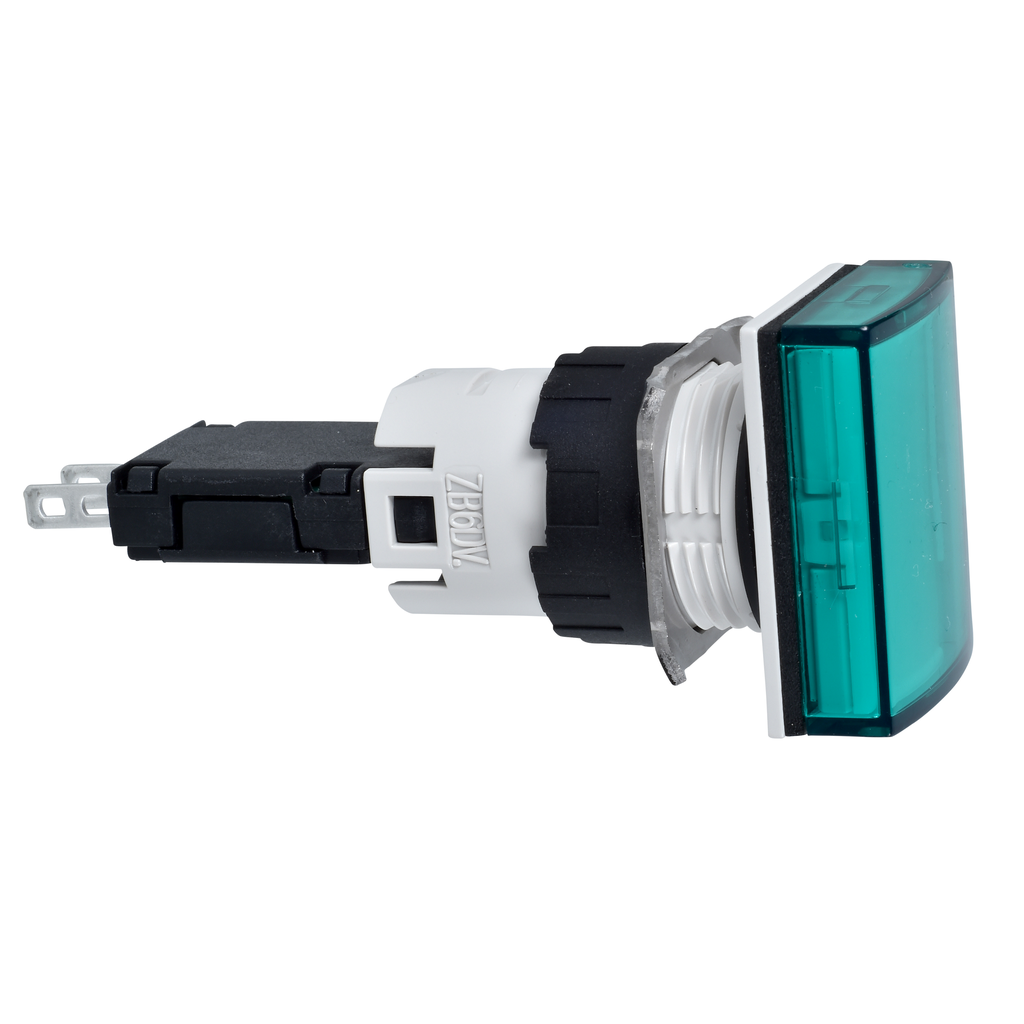

16mm push button, Harmony XB6, pilot light, rectangular green lens, integral 12/24V LED light module

XB6/ZB6 16mm push buttons, pilot lights and selctor swiches are for applications where the surface area is restricted. These operators are commonly used on small machines, control panels, control boards, small electronic equipment and more. This operator is a complete 16mm pilot light. Pilot light has a green rectangular lens. Pilot light has a 12-24 VAC/VDC LED light module. Light module has 2.8 x 0.5 mm faston connectors. Selector switch is 0.71 inches tall, 0.94 inches wide and 2.24 inches deep. Selector switch weighs 0.03 lbs. Operator is NEMA 4, 4X and 13 rated. Selector switch is UL listed and CSA certified. “This product is certified by CCC, CSA, UL and GOST. It meets JIS C 852, JIS C8201-5-1, EN/IEC 60947-1, EN/IEC 60947-5-5, EN/IEC 60947-5-1 and JIS C8201-1 standards.” “It is installed into a Ø 16mm panel cutout.” “The modular and monolithic range of Ø 16mm plastic control and signaling provide flexibility and simplicity of setup in industrial and commercial applications.”
