Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 2.5 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus and 800V conforming to EN/IEC 60947-7-1. The rated current is 24A conforming to EN/IEC 60947-7-1 and 20A conforming to CSA and cURus. It has grey surface treatment. Mounting by clip-on and top connection by single-level 1×2 push-in (upstream and downstream) terminals. It could be connection without tool and disconnection by flat screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (VDE, LR, cURus, IEC-Ex, ATEX, EAC, GL, CSA). It is compliant with Green Premium (RoHS/REACH).

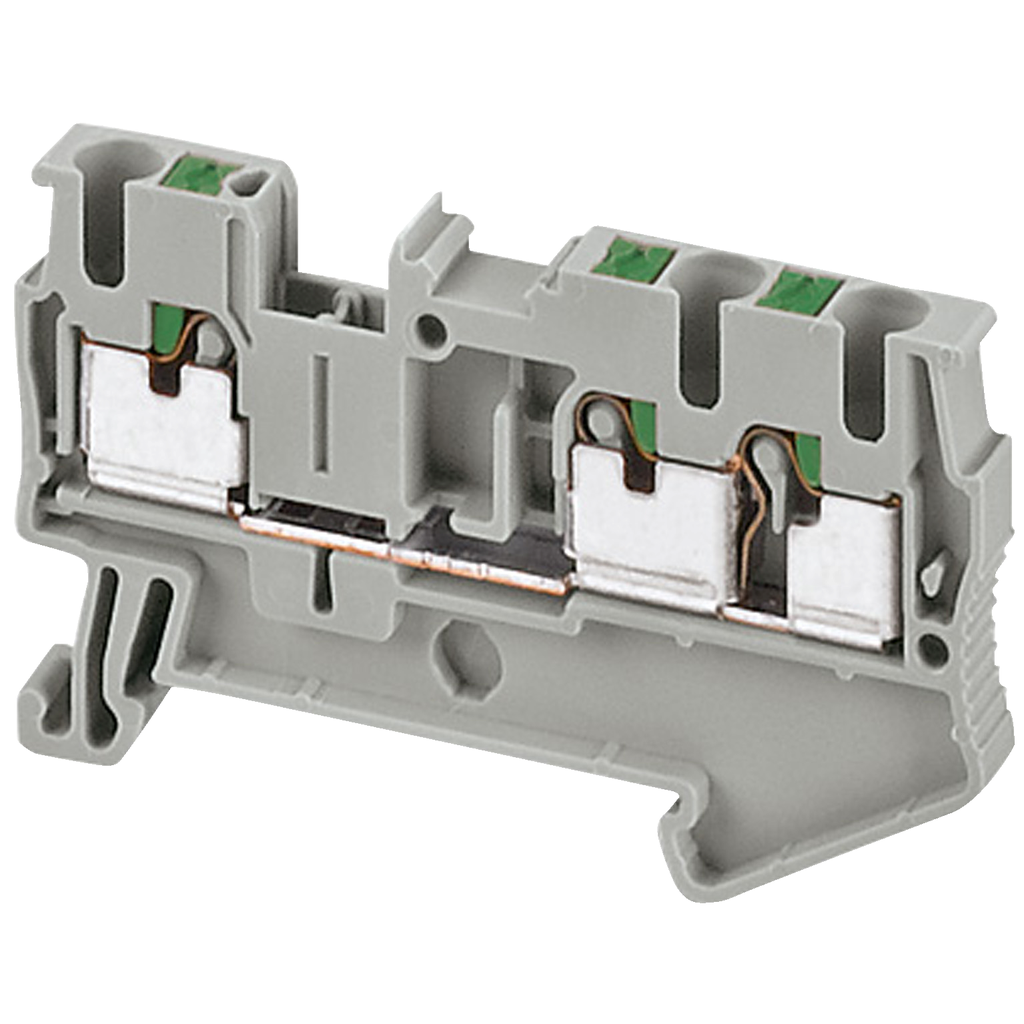

Terminal block, Linergy TR, push-in type, feed through, 3 points, 2.5mm², grey, set of 50
Terminal block, Linergy TR, push-in type, feed through, 3 points, 2.5mm², grey, set of 50
SKU: 504272
Category: Automation & Control
Reviews (0)
Be the first to review “Terminal block, Linergy TR, push-in type, feed through, 3 points, 2.5mm², grey, set of 50” Cancel reply
