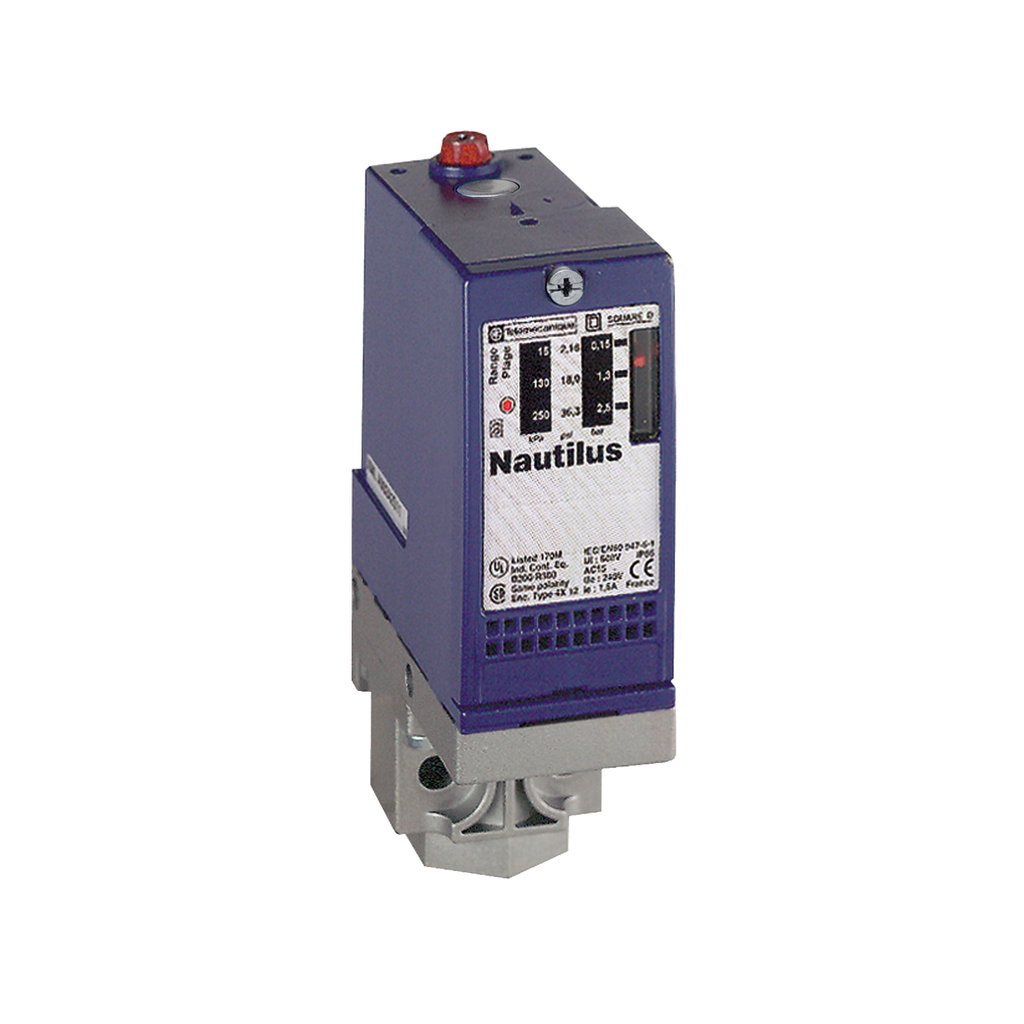

pressure switch XMLA 70 bar – fixed scale 1 threshold – 1 C/O

This product is part of the XML range, an offer of pressure sensors and switches. This pressure switch controls or regulates pressure levels in hydraulic systems. It transforms the pressure change into a digital electrical signal when the preset operating points are reached. These pressure switches are used for pressure control or monitoring on water pumps, compressors, molding presses, injection molders, grinding machines, machining centers, etc. This pressure sensor has a fixed differential and is for detection of a single threshold. It incorporates a 1 C/O single-pole contact. Pressure Range on increasing pressure is 72.5 psi to 1015 psi and a maximum permissible accidental pressure of 2320 psi. It is furnished with screw clamp terminals for electrical connection. I has a 1/4inch 18 NPTF (female) connection for fluid connection and a 1/2inch NPT conduit electrical connection. It has a piston actuator which can be operated from any position. It offers a long mechanical life with a mechanical durability of about 6 million operating cycles. It is an IP66 rated product. The enclosure is made of zinc alloy. Its dimensions are 1.38 inches (width) x 2.95 inches (depth) x 4.45 inches (height) and weighs 1.53 lbs. This pressure switch is suitable for controlling hydraulic oil (0°C to 160°C). This product is certified by UL, LROS (Lloyds Register of Shipping), EAC, CSA, CE and BV. It complies with UL 508, EN/IEC 60947-5-1 and CSA C22.2 No 14 standards. One of the most comprehensive catalogues of industrial and power pressure sensors on the market. The line of XM Pressure Sensors and Switches (formerly known as OsiSense) combine the latest pressure sensing technology with adaptability to virtually any configuration.
