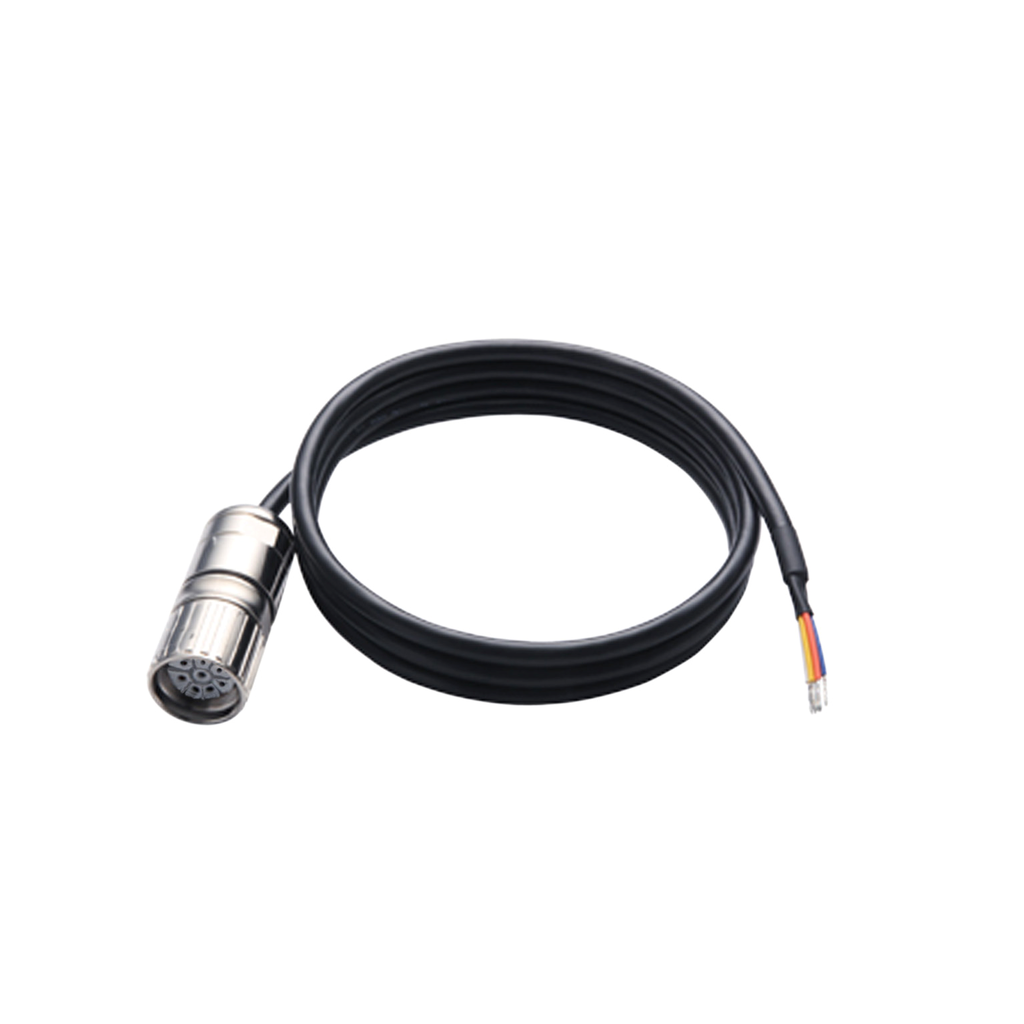

This power cordset enables connection between synchronous motor BMP and variable speed drive Altivar 32 or Altivar 320. It is equipped with one 8-way M23 connector for synchronous motor side and one free end for variable speed drive side. it is 3 meters shielded cable.
power cordset 4×2,5mm² + 2x1mm² + 2×0,14mm² 3 m one end w M23 industrial con.
power cordset 4×2,5mm² + 2x1mm² + 2×0,14mm² 3 m one end w M23 industrial con.
