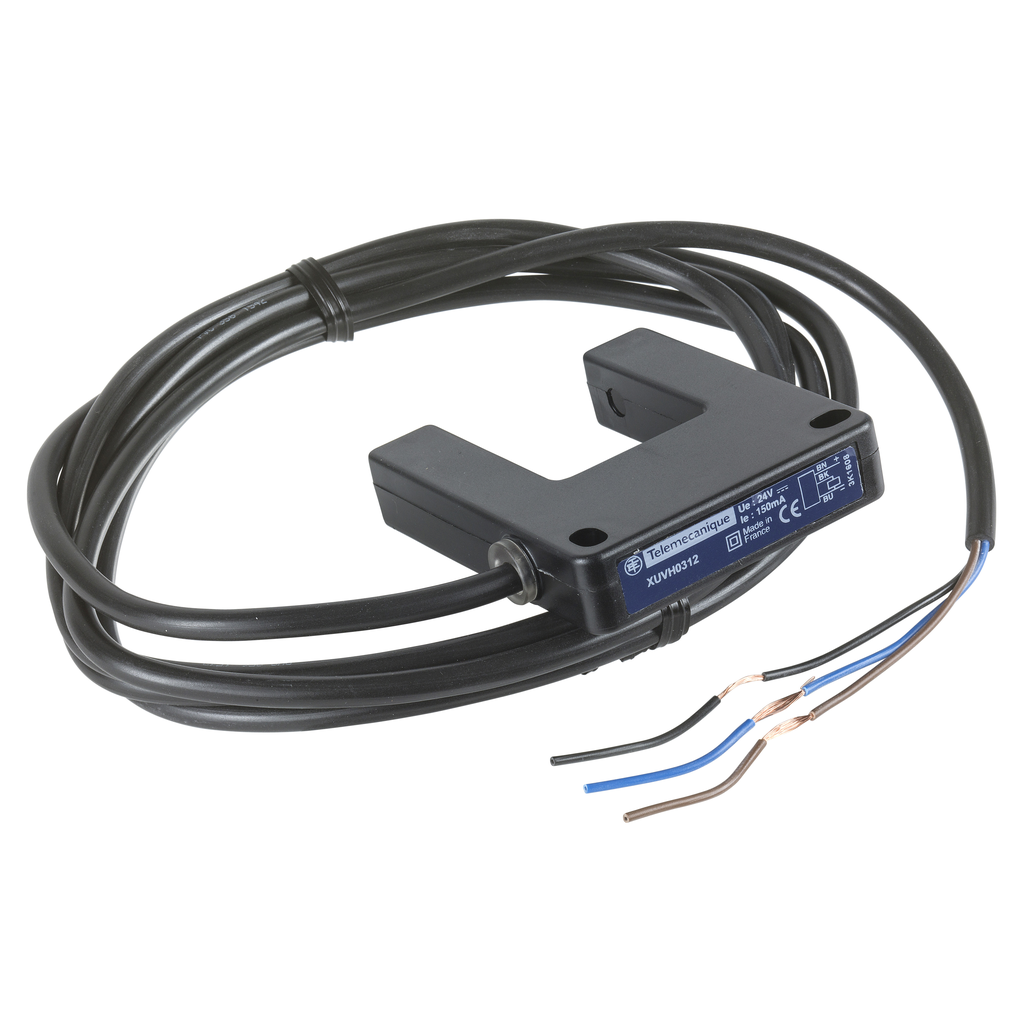

This product is part of the XU range, an offer of photoelectric sensors. This photoelectric sensor has a fork design. It has a through-beam detection system. It supports 30mm nominal sensing distance and 1 normally opened PNP solid state discrete output. It is furnished with 2m cable for electrical connection. It is an IP54 rated product. It is a photoelectric sensor with a rated supply voltage of 24V DC with reverse polarity protection, a no-load current consumption of ≤20mA and a switching frequency of ≤1kHz. It has an infrared emission and 1 LED for output state. The enclosure is made of ABS/PC with PMMA lens. Its dimensions are 14mm (Width) x 68mm (Depth) x 59mm (Height) and weighs 0.13kg. It is ideal for material handling, packaging, labelling, assembly, lift, escalators or food and beverage industries. This product is certified by CE.
Photoelectric sensors XU, XUV, fork, handling, 30X30mm, 12…24 VDC, cable 2 m
Photoelectric sensors XU, XUV, fork, handling, 30X30mm, 12…24 VDC, cable 2 m
SKU: 1258708
Category: Sensors & Switches
